Diagram for Control Panel And Latch Parts
Control Panel And Latch Parts

Diagram for Door And Panel Parts
Door And Panel Parts

Diagram for Fill, Drain And Overfill Parts
Fill, Drain And Overfill Parts

Diagram for Inner Door Parts
Inner Door Parts

Diagram for Lower Rack Parts
Lower Rack Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Pump, Washarm And Motor Parts
Pump, Washarm And Motor Parts

Diagram for Third Level Rack And Track Parts
Third Level Rack And Track Parts

Diagram for Tub And Frame Parts
Tub And Frame Parts

Diagram for Upper Rack And Track Parts
Upper Rack And Track Parts

Diagram for Upper Wash And Rinse Parts
Upper Wash And Rinse Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11836634 Dishrack, Upper   (Replaces: W11807557) Appelez-nous -
2 W11836635 Tine Row, Fold Down   (Replaces: W11807564) Appelez-nous -
3 WP3385089 Track, Dishrack   (Replaces: 3385089) In-Stock Immediately $ 80.00

4 WP8565925 Stop, Track (non-removable)   (Replaces: W10082860) In-Stock Immediately $ 6.87

5 W11179794 Positioner Special Order $ 23.12

6 W11627535 Clip, Pivot   (Replaces: W11179753) Special Order $ 26.48

7 W11267702 Button, Adjuster Arm Appelez-nous -
8 W11662350 Rack Adjuster (left)   (Replaces: W11503620) In-Stock Immediately $ 46.17

9 WP3385088 Wheel   (Replaces: 3379676) In-Stock Immediately $ 12.40

10 W11180178 Leveler, Adjuster Arm Special Order $ 76.16

11 W11612314 Clip, Adjuster Arm   (Replaces: W11509750) Special Order $ 22.63

W11662349 Rack Adjuster (right)   (Replaces: W11503619) In-Stock Immediately $ 45.79


    View Diagram in Separate Window     Print Icon   Print Part List

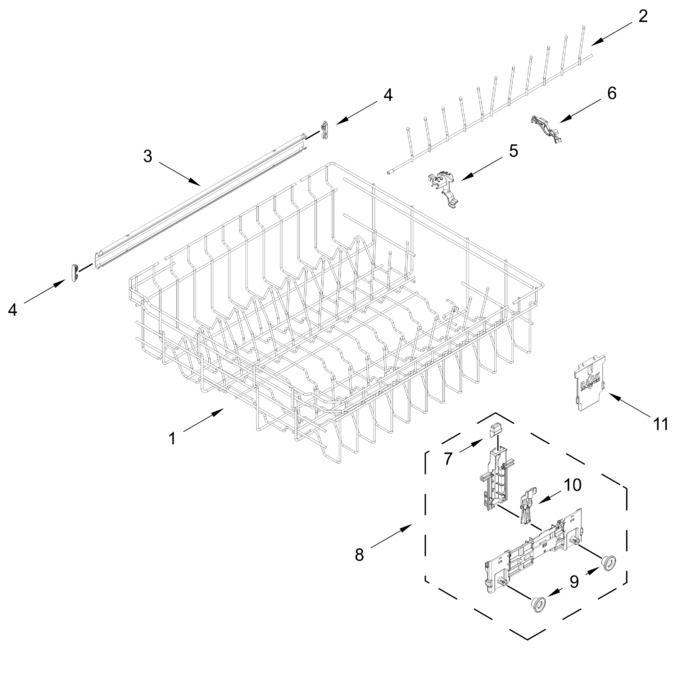

Diagram for WDP730HAMZ2
