Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11836636 Dishrack, Lower   (Replaces: W11807554) Special Order $ 177.40

2 W11551383 Wheel And Transport Assembly   (Replaces: W11133747) In-Stock Immediately $ 15.33

3 W11833150 Silverware Basket   (Replaces: W11823029) Appelez-nous -
4 W11836633 Tine Row, Fold Down   (Replaces: W11807547) Appelez-nous -
5 W11736466 Retainer, Flex Row   (Replaces: W11268658) Special Order $ 23.49


    View Diagram in Separate Window     Print Icon   Print Part List

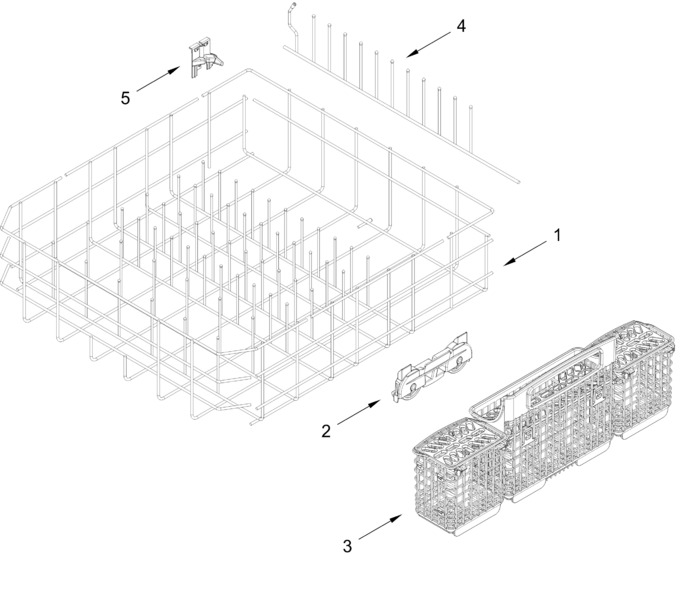

Diagram for WDTA50SAKV5
