SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

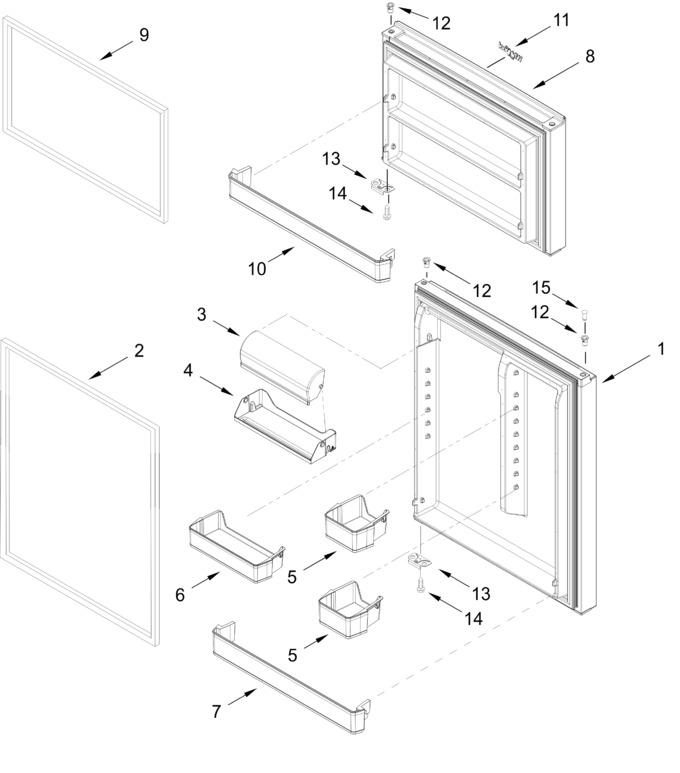

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826648		Door, Refrigerator (stainless, Includes Door Gasket)   (Replaces: W11776729)		Appelez-nous	-
2	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 302.22
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11829842		Bin, Rc Door (short)   (Replaces: W11757100)		Appelez-nous	-
6	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 50.84
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826365		Door, Freezer (stainless, Includes Door Gasket)   (Replaces: W11776714)		Appelez-nous	-
9	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 251.19
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 58.63
12	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 13.33
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	W10276642		Screw   (Replaces: 8533904)				$ 5.77
15	WP2254517		Plug, Hinge Hole (grey)   (Replaces: 2254517)			Immediately	$ 21.91
	W10676240		Door Reversal Kit Stainless Model				$ 101.29
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
