SELECT A DIAGRAM

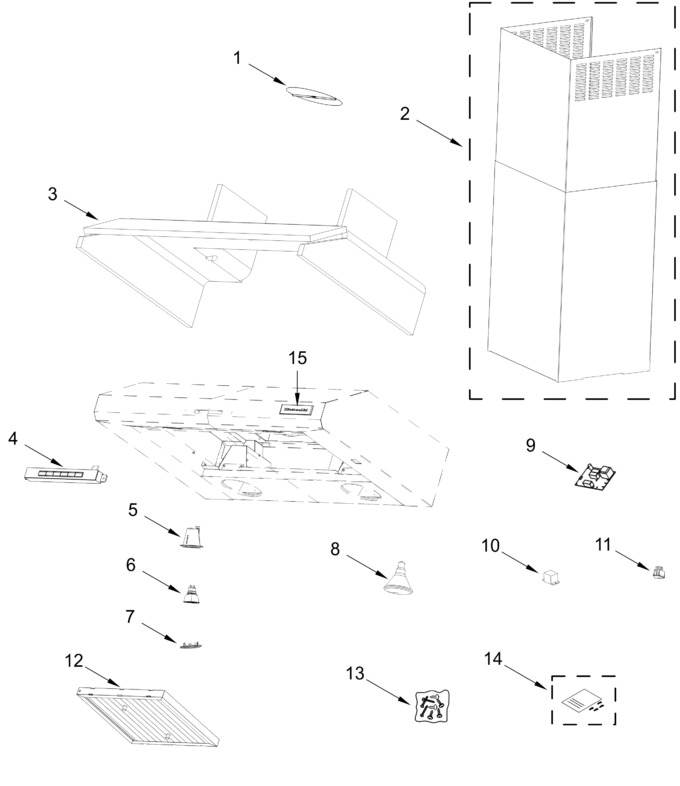

Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551389 | Damper |
|
Immediately | $ 138.74 | ||||
| 2 | W11417439 | Chimney, Upper And Lower (Replaces: W11388446) |
|
$ 439.79 | |||||
| 3 | W11565688 | Insulation (36 Inch) (Replaces: W11565655) |
|
- | |||||
| 4 | W11516463 | Control (Replaces: W11514909) |
|
$ 366.38 | |||||
| 5 | W11565681 | Socket, Lamp (Replaces: W11565528) |
|
$ 151.90 | |||||
| 6 | W11800238 | Lamp, Led (Replaces: W11799463) |
|
Immediately | $ 87.63 | ||||
| 7 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 8 | WPW10294005 | Lamp, Infrared Heat (Replaces: W10294005) |
|
Immediately | $ 296.71 | ||||
| 9 | W11700319 | Filter, Noise (Replaces: W11565531) |
|
$ 251.99 | |||||
| 10 | W11565687 | Relay (Replaces: W11565541) |
|
$ 100.30 | |||||
| 11 | W10351934 | Switch, (on/off) |
|
$ 73.64 | |||||
| 12 | W10351890 | Filter, Grease |
|
$ 117.92 | |||||
| 13 | W11832470 | Kit, Filter Installation (Replaces: W11832092) |
|
- | |||||
| 14 | W11565654 | Hardware, Installation |
|
$ 234.63 | |||||
| 15 | W11783546 | Badge (Replaces: W11688411) |
|
- |
