Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11823353 Control Panel   (Replaces: W11768480) Appelez-nous -
2 7101P33860 Screw Appelez-nous -
3 3196265 Screw   (Replaces: 3400099) Appelez-nous -
4 W10162096 Screw Special Order $ 21.90

5 W11789239 Grate Burner Kit Appelez-nous -
6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11531096 Flame Spreader   (Replaces: W11352193) Special Order $ 81.92

8 W11531098 Flame Spreader   (Replaces: W11352197) Special Order $ 80.72

9 W11788769 User Interface   (Replaces: W11777682) Appelez-nous -
10 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

11 W11820146 Bezel Assembly, Gas Burner (black Ore)   (Replaces: W11801797) Appelez-nous -
12 W11576413 Cap, Stack Burner (black)   (Replaces: W11346163) Special Order $ 89.25

13 W11788771 Cap Kit, Burner (black, Set Of 2)   (Replaces: W11750250) Appelez-nous -
14 W11436986 Flame Spreader, Stack   (Replaces: W11348511) In-Stock Immediately $ 71.73

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11820148 Knob, Oven Mode (black Ore)   (Replaces: W11758666) Appelez-nous -
17 W11790580 Manager, Appliance (powermax)   (Replaces: W11777692) Appelez-nous -
18 W11788773 Panel, Left Cooktop (black)   (Replaces: W11758655) Appelez-nous -
19 W11121361 Filler, Cooktop (black) Special Order $ 465.65

20 W11788779 Panel, Right Cooktop (black)   (Replaces: W11758656) Appelez-nous -
21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11674763 Screw   (Replaces: W10919387) Special Order $ 14.76

23 W10271524 Trim, T-strip (black) Special Order $ 212.34

24 W11820149 Knob, Dual (black Ore)   (Replaces: W11732026) Appelez-nous -
25 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

26 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

27 W11820163 Bezel Assembly, Oven (black Ore)   (Replaces: W11738553) Appelez-nous -
28 W11820164 Knob, Oven Temperature (black Ore)   (Replaces: W11740404) Appelez-nous -
29 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

30 W11820165 Button Assembly, Oven Light (black Ore)   (Replaces: W11769833) Appelez-nous -
31 W11477029 Trim, Island Special Order $ 385.64

32 W10323248 Insert, Island Trim Special Order $ 268.00

33 W11820147 Button Assembly, Oven Start (black Ore)   (Replaces: W11769831) Appelez-nous -
34 W11788785 Screw   (Replaces: W11755190) Appelez-nous -
35 WP486754 Screw   (Replaces: 246119) Special Order $ 8.01

ARI1CEA8328406821DB8179A8C971BDB5B4 (left Rear, Right Rear) Appelez-nous -
W11820150 Knob, Single (black Ore)   (Replaces: W11731286) Appelez-nous -
W10130759 Bracket, Moving Console (right) Special Order $ 75.94

ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

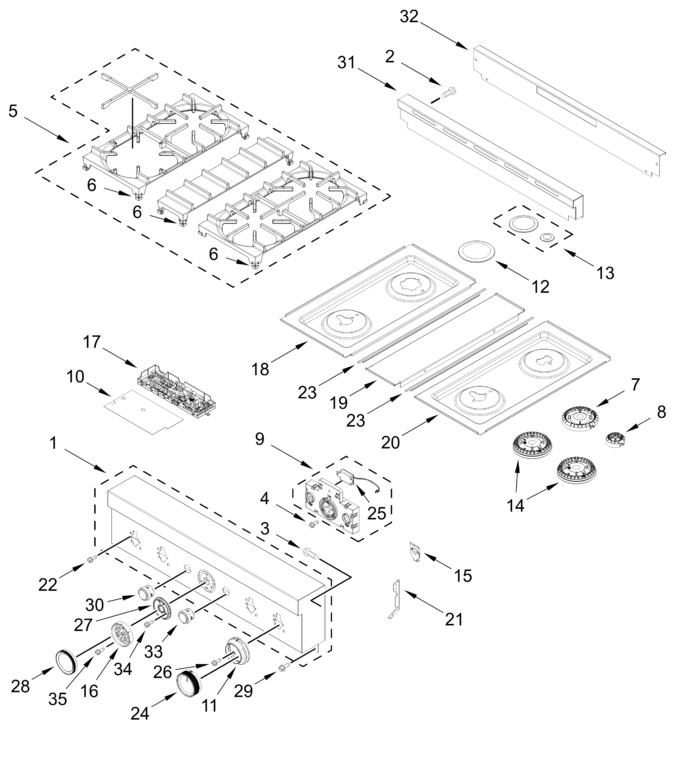

Diagram for KFGS930SBE00
