Cabinet Parts


Dispenser Front Parts


Freezer Door Parts


Freezer Liner Parts


Icemaker And Ice Container Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

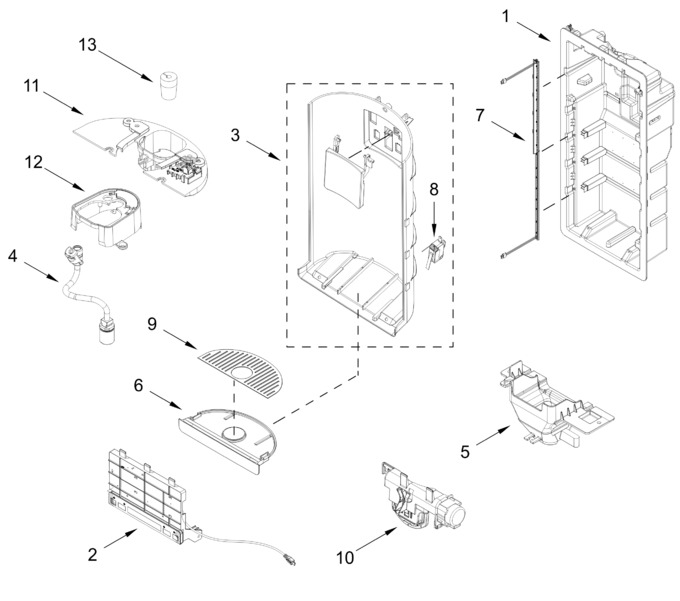

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11847645		Dispenser Ui Assembly (black Ore)   (Replaces: W11775967)		Appelez-nous	-
3	W11847648		Dispenser Well Assembly (black Ore)   (Replaces: W11762783)		Appelez-nous	-
4	W11821706		Spigot Tube Assembly   (Replaces: W11754979)		Appelez-nous	-
5	W11821633		Dispenser Separator   (Replaces: W11769569)		Appelez-nous	-
6	W11847647		Dispenser Tray (black Ore)   (Replaces: W11767992)		Appelez-nous	-
7	W11762789		Led Strip Assembly (black Ore, Left Hand)		Appelez-nous	-
8	W11787550		Microswitch Tray   (Replaces: W11577793)		Appelez-nous	-
9	W11821632		Dispenser Drip Tray (stainless)   (Replaces: W11754698)		Appelez-nous	-
10	W11821634		Bracket Assembly (ice Door Motor)   (Replaces: W11762391)		Appelez-nous	-
11	W11821716		Dispenser Top Nozzle Assembly   (Replaces: W11762566)				$ 132.90
12	W11835244		Dispenser Bottom Nozzle Assembly   (Replaces: W11767996)		Appelez-nous	-
13	W11807693		Dispenser Tube Seal   (Replaces: W11728424)		Appelez-nous	-
	W11762791		Led Strip Assembly (black Ore, Right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
