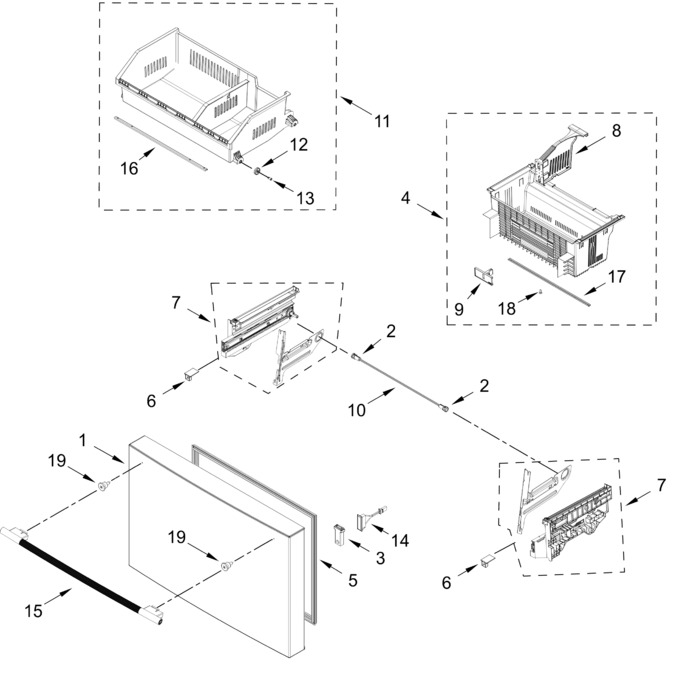

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797006		Freezer Door Assembly (juniper, Includes Door Gasket)   (Replaces: W11690378)				$ 428.42
2	WPW10277361		Gear Collar   (Replaces: W10277361)				$ 12.09
3	W11791009		Reed Switch Holder   (Replaces: W11658593)		Appelez-nous	-
4	W11790975		Bottom Basket Assembly   (Replaces: W11534705)		Appelez-nous	-
5	W11803538		Freezer Door Gasket (grey)   (Replaces: W11586644)		Appelez-nous	-
6	W11790836		Clip Adapter   (Replaces: W11614114)		Appelez-nous	-
7	W11830077		Adapter Assembly (left Hand)   (Replaces: W11750020)				$ 502.60
8	W11807392		Bottom Basket Divider   (Replaces: W11727686)		Appelez-nous	-
9	W11787215		Slider Basket   (Replaces: W11632631)				$ 25.75
10	W11787217		Shaft Rack Assembly (bottom)   (Replaces: W11611561)		Appelez-nous	-
11	W11790976		Top Basket Assembly   (Replaces: W11536451)		Appelez-nous	-
12	W11807405		Pan Roller   (Replaces: W10838061)		Appelez-nous	-
13	W10839805		Roller Axle		Appelez-nous	-
14	W11793915		Reed Switch   (Replaces: W11553901)				$ 63.22
15	W11794191		Handle Assembly (juniper)   (Replaces: W11682891)		Appelez-nous	-
16	W11798521		Pan Support   (Replaces: W11612780)		Appelez-nous	-
17	W11798520		Pan Support   (Replaces: W11604038)		Appelez-nous	-
18	W11816126		Screw   (Replaces: W11113841)		Appelez-nous	-
19	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
	W11830077		Adapter Assembly (right Hand)   (Replaces: W11750021)				$ 502.60

    View Diagram in Separate Window       Print Part List
