SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Lit/optional

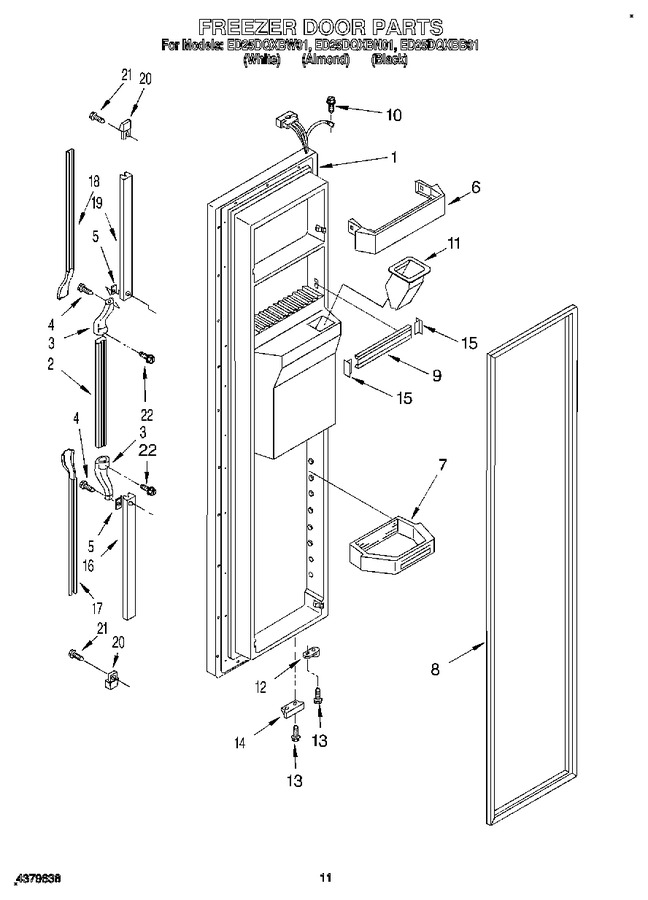

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159376		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2159339		Freezer Door (includes Item 8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2159377		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	1118417		Handle, Center (black)		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WP489128		Screw   (Replaces: 488500)				$ 10.88
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2171166		Trivet, Shelf (2)		Appelez-nous	-
7	2162891		Shelf Bin (2)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159078)				$ 310.19
8	2159074		Door Gasket, Magnetic (repair) (mist Beige)				$ 310.19
8	2159082		Door Gasket, Magnetic (repair) (black)				$ 316.66
9	2170920		Trim, Door Shelf		Appelez-nous	-
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam (chrome)   (Replaces: 2155313)			Immediately	$ 27.36
12	4318165		Door Closer, Upper Cam (black)   (Replaces: 2155312)			Immediately	$ 27.36
13	WP999367		Screw   (Replaces: 489367)				$ 7.86
14	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2155334		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	1119360		Retainer, Insert		Appelez-nous	-
17	1118435		Insert, Handle (black)		Appelez-nous	-
17	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119361		Insert, Handle (white)		Appelez-nous	-
18	1119375		Insert, Handle (almond)		Appelez-nous	-
18	1119373		Insert, Handle (white)		Appelez-nous	-
18	1118437		Insert, Handle (black)		Appelez-nous	-
19	1119372		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-
