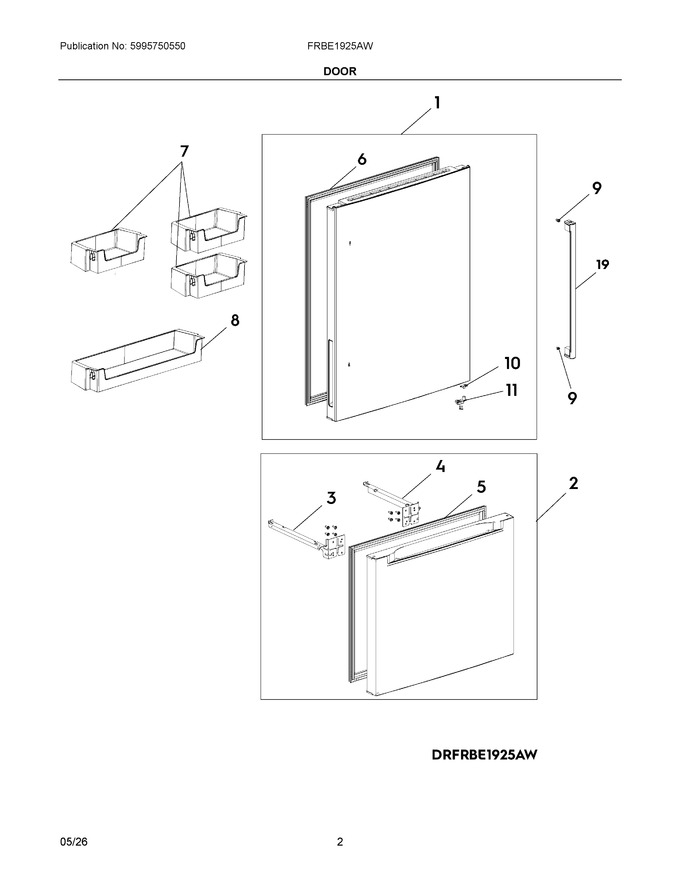

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056042155		Door Assembly Complete, Refrigerator, White				$ 203.72
2	4056042163		Door Assembly Complete, Freezer, White		Appelez-nous	-
3	4056039300		Slide Rail, Left Support, Freezer Door		Appelez-nous	-
4	4056039318		Slide Rail, Right Support, Freezer Door		Appelez-nous	-
5	4056039862		Gasket, Freezer Door				$ 63.34
6	4056039847		Gasket, Refrigerator, Door				$ 53.94
7	4056039722		Bin, Door Shelf, Small				$ 22.19
8	4056039730		Bin, Door Shelf, Large				$ 36.63
9	4056042189		Handle Bolt, Upper & Lower				$ 3.97
10	5304523542		Stop, Door, Middle Hinge				$ 10.62
11	5304523512		Closer, Door, Hinge			Immediately	$ 8.34
19	4056039912		Handle, Refrigerator, Door		Appelez-nous	-
NI	4056058532		Handle Screw Kit			Immediately	$ 14.82
