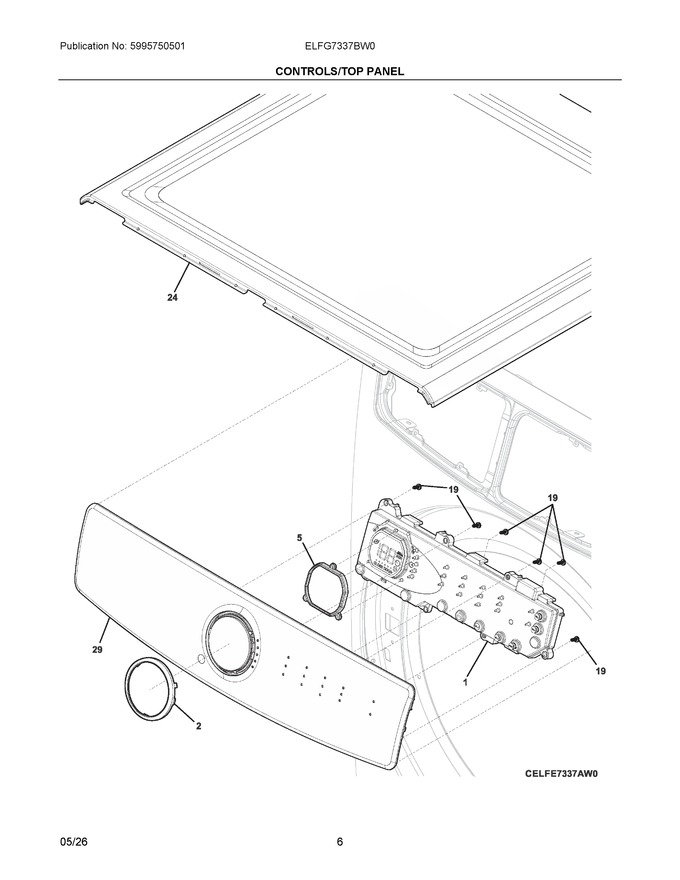

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529953		Board Assembly, Ui Linear, W/housing-screw		Appelez-nous	-
2	5304505044		Trim, Ring, Chrome				$ 42.51
5	5304505045		Seal, Display Area		Appelez-nous	-
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
24	5304535900		Work Top, White		Appelez-nous	-
29	5304529699		Console Assembly, W/overlay				$ 124.77
NI	5304529955		Harness, Wiring, Main				$ 175.92
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
