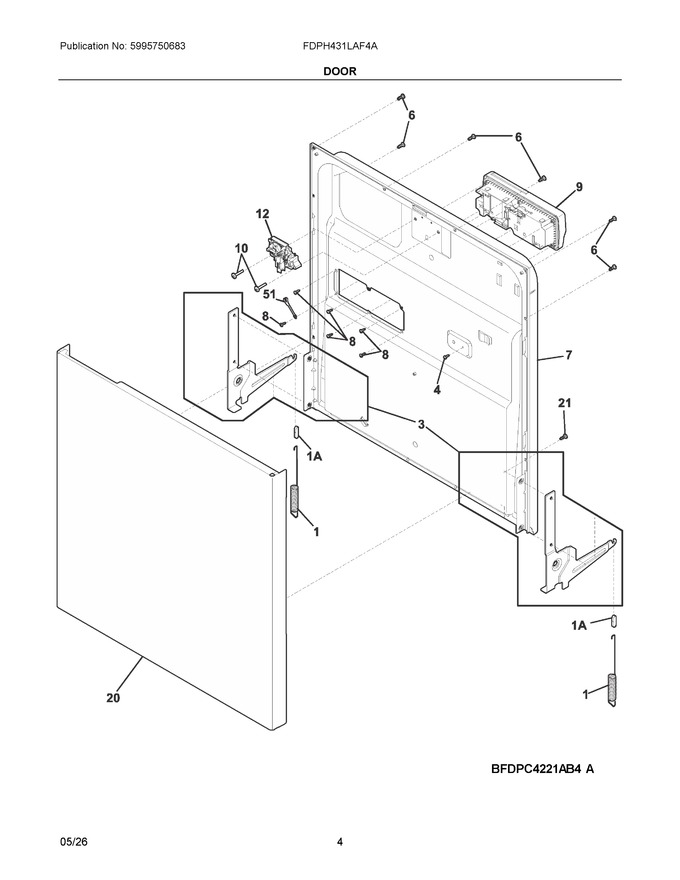

03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430501		Spring, Door, (2)			Immediately	$ 40.34
3	5304513274		Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts			Immediately	$ 73.96
4	808326801		Screw, Hex Hd, 8-18 X .4, W/washer   (Replaces: 154825401)				$ 3.15
6	154783102		Screw, Plt, 8-10, Dark Finish		Appelez-nous	-
7	140119106031		Liner Assembly, Inner Door			Immediately	$ 69.21
8	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 10.24
9	5304532199		Dispenser, Det/rinse Aid, W/level Ind.			Immediately	$ 72.42
10	154103702		Screw, Latch Mtg, (2)				$ 14.96
12	140259553018		Latch Assembly, Door			Immediately	$ 25.86
20	5304535562		Door Assembly, Outer, Stainless, W/insulation				$ 155.03
21	154754702		Screw, Truss Hd, 8-18 Type Ab, Dark Finish				$ 6.22
30	154241101		Retainer, Thermostat				$ 4.02
40	5304510708		Handle, Door, Stainless			Immediately	$ 136.55
41	154603401		Plate, Handle Support, (2)			Immediately	$ 18.11
49	5304532198		Gasket, Door Wiper, Black, Bottom			Immediately	$ 10.07
51	154320301		Clamp, Drip Loop, Wire				$ 62.69
53	154425001		Nut, Keps, (2), Handle Mtg.				$ 11.03
1A	154325201		Linkage, Door Spring, (2)			Immediately	$ 30.30
NI	5304519911		Sleeve, Brake, Rh, C-arm				$ 40.97
NI	154686401		Bearing, Hinge Pin				$ 11.81
NI	5304519910		Sleeve, Brake, Lh, C-arm				$ 41.77
NI	154647101		Hinge Pin, Arm Assy				$ 15.75
NI	5304538695		Insulation, Door		Appelez-nous	-
NIA	5304525214		Shield, Dispenser Assy			Immediately	$ 11.25
