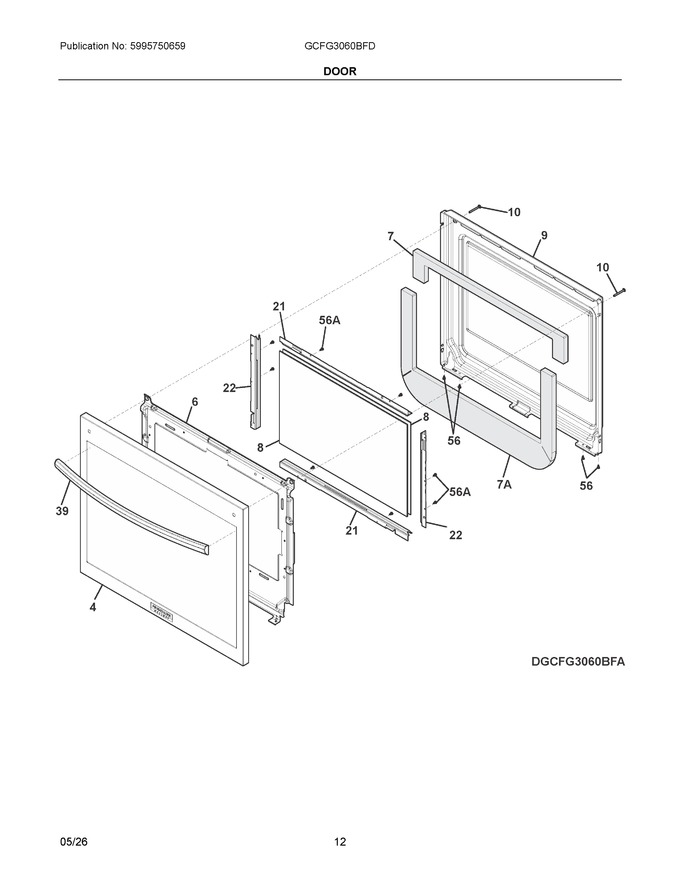

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304528493 | Door Assembly, Outer, Ez Care Stnlss, W/badge |
|
Immediately | $ 278.80 | ||||
| 6 | 5304528106 | Shield, Wool |
|
Immediately | $ 108.93 | ||||
| 7 | 140293846022 | Insulation, Door Top |
|
Immediately | $ 7.94 | ||||
| 8 | 140163079100 | Glass, Door, Inner |
|
$ 69.02 | |||||
| 9 | 5304528160 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 156.14 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
Immediately | $ 2.53 | ||||
| 21 | 5304526285 | Bracket, Glass Pack, Horizontal |
|
$ 10.11 | |||||
| 22 | 5304526284 | Bracket, Glass Pack, Vertical |
|
Immediately | $ 13.48 | ||||
| 39 | 140172171054 | Handle, Door, Stainless |
|
Immediately | $ 53.97 | ||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.37 | |||||
| 56A | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.37 | |||||
| 7A | 140299178040 | Insulation, Door, Bottom |
|
- | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
