01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

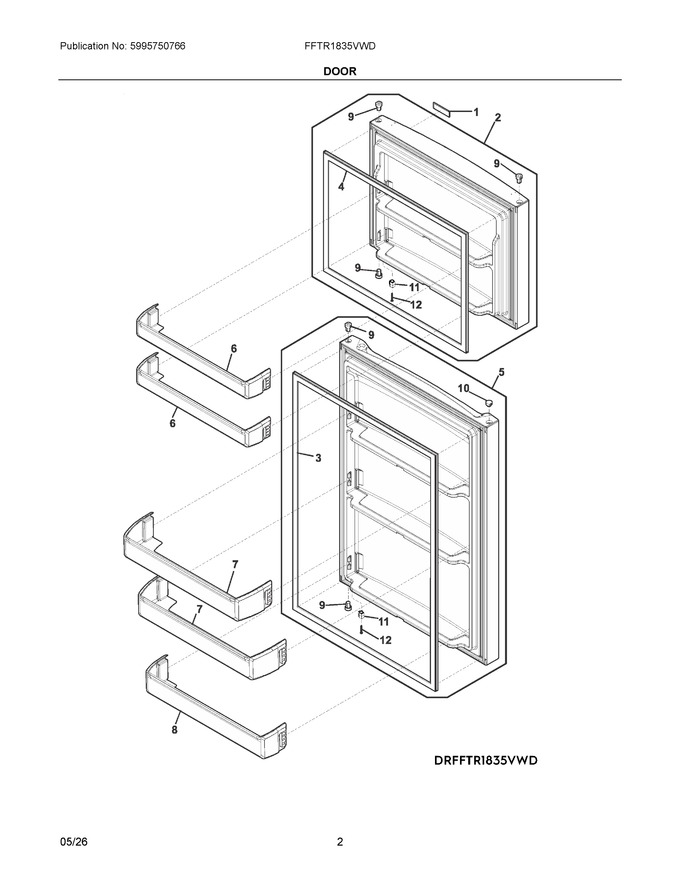

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511144		Badge, Frigidaire, White			Immediately	$ 5.06
2	140210785196		Door Assembly, Freezer, White		Appelez-nous	-
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 227.91
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 200.01
5	140210779199		Door Assembly, Refrigerator, White		Appelez-nous	-
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 56.26
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 78.61
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 24.91
9	5304519757		Bearing, Hinge, White			Immediately	$ 8.11
10	5304519747		Cover, Hinge Bearing, White				$ 3.31
11	5304536276		Stopper, Door, White			Immediately	$ 4.19
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64

    View Diagram in Separate Window       Print Part List
