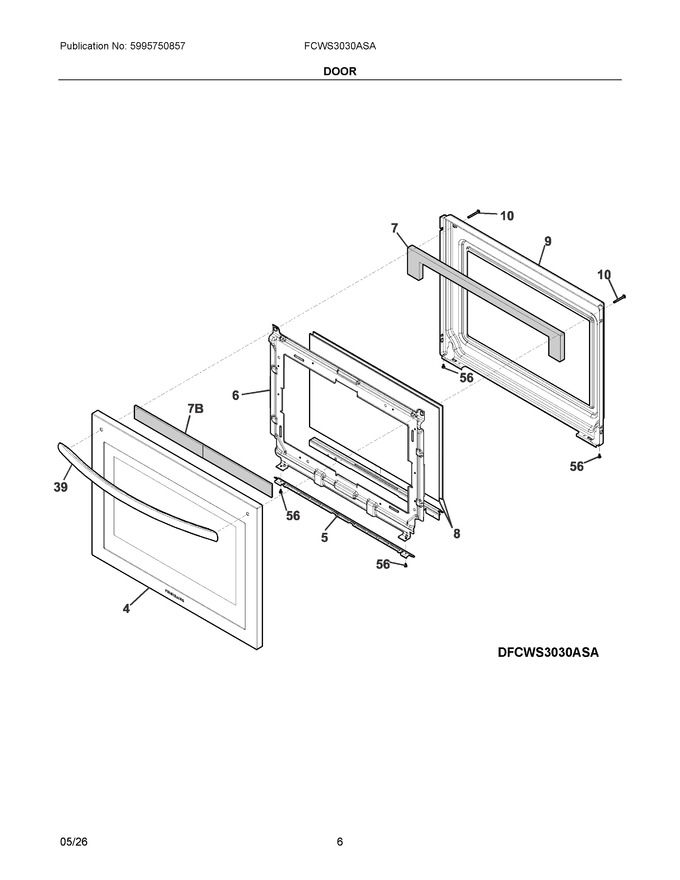

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304528492 | Door Assembly, Outer, Steel/glass, Stainless, W/top Cap |
|
Immediately | $ 219.12 | ||||
| 5 | 5304530443 | Bracket, Door Protection, Lower |
|
$ 36.24 | |||||
| 6 | 5304526283 | Shield, Wool |
|
Immediately | $ 120.86 | ||||
| 7 | 140299178057 | Insulation, Door, Top |
|
- | |||||
| 8 | 5304528194 | Glass, Door, Inner, Pxl Shr |
|
Immediately | $ 115.22 | ||||
| 9 | 5304533466 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 130.38 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
Immediately | $ 2.53 | ||||
| 39 | 140067504096 | Handle, Door, Stainless |
|
$ 53.48 | |||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.37 | |||||
| 7B | 5304526530 | Insulation, Foil, Door |
|
$ 16.85 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- |
