Bulkhead Parts
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:

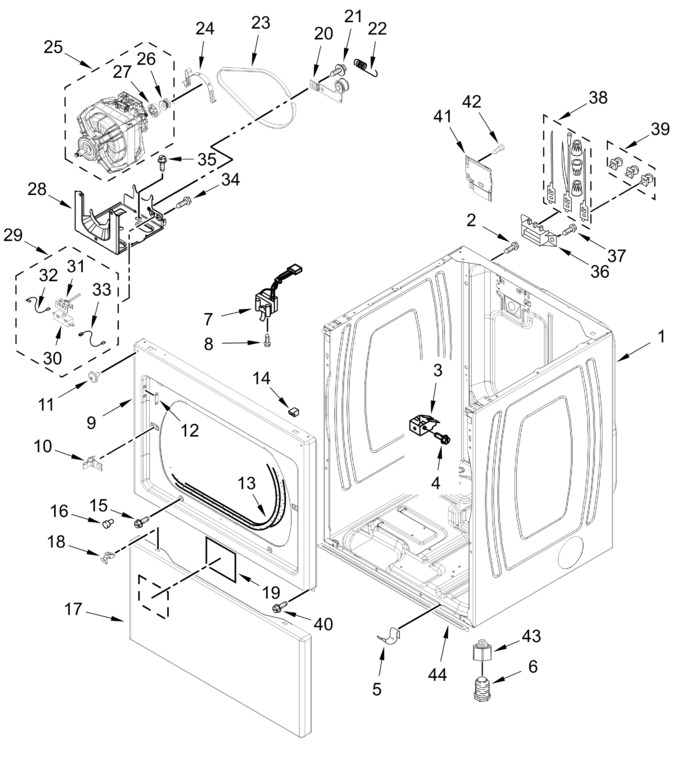

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 419.21 | |||||
| 2 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 4 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.88 | |||||
| 5 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.75 | |||||
| 6 | W10888529 | Leveling Leg Assembly (Replaces: W10073890) |
|
Immediately | $ 13.29 | ||||
| 7 | W11847389 | Switch, Door (Replaces: W11691095) |
|
$ 75.60 | |||||
| 8 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 9 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 272.53 | |||||
| 10 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 20.99 | ||||
| 11 | W10879744 | Screw |
|
- | |||||
| 12 | W11481394 | Cover, Hinge Hole (white) (Replaces: W11308618) |
|
$ 21.32 | |||||
| 13 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 14 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 7.70 | ||||
| 15 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 16 | 693152 | Bumper |
|
$ 10.96 | |||||
| 17 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 18 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 19 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 29.48 | |||||
| 20 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 83.77 | ||||
| 21 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 22 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 23 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 24 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 25 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 26 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 27 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 28 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 29 | 279782 | Assembly, Switch (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 30 | 279782 | Switch, Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 31 | WP8066120 | Lever, Belt Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 32 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 61.58 | |||||
| 33 | W10167612 | Wire, Belt Switch |
|
$ 12.78 | |||||
| 34 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.56 | |||||
| 35 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 36 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 23.02 | |||||
| 37 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 38 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 100.99 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 47.37 | ||||
| 40 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 41 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 419.21 | |||||
| 42 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.82 | |||||
| 43 | W11668765 | Foot, Dryer Adapter (Replaces: W11590485) |
|
$ 21.64 | |||||
| 44 | W10236068 | Bracket, Cabinet |
|
$ 24.47 |
