Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11818404 Appliance Manager   (Replaces: W11799765) Appelez-nous -
2 W11607085 . Sensor, Convection   (Replaces: 423107845441) In-Stock Immediately $ 44.42

3 WPW10493735 . Heater, Convection Element   (Replaces: 461967848711) In-Stock Immediately $ 110.49

4 W11512064 Blade, Fan   (Replaces: W11453899) In-Stock Immediately $ 171.35

5 WPW10128850 Sliding Arm Assembly   (Replaces: W10128850) In-Stock Immediately $ 142.08

6 W11758693 Filter, Noise   (Replaces: W11755010) Special Order $ 43.11

7 461967754821 . Duct, Magnetron Special Order $ 87.16

8 W10486208 . Trim, Side (left)   (Replaces: 461967017491) Special Order $ 79.14

9 461967825321 . Screw Special Order $ 12.13

10 W11754877 Light Module, Led   (Replaces: W11692431) Special Order $ 95.50

11 461967842541 . Thermoactuator Special Order $ 72.29

12 W11188752 . Fuse   (Replaces: 241908600053) In-Stock Immediately $ 17.37

13 W10245194 Block, Fuse   (Replaces: 4375231) Special Order $ 87.31

14 W11754876 Thermostat, Magnetron   (Replaces: W11692611) In-Stock Immediately $ 111.45

15 W11578959 Magnetron   (Replaces: W11504545) In-Stock Immediately $ 123.62

16 W11754878 Lens Assy, Led   (Replaces: W11692409) Special Order $ 39.95

17 W11754879 Tray, Electronic   (Replaces: W11645761) Appelez-nous -
18 W11754880 Probe, Temperature   (Replaces: W11692542) Special Order $ 54.25

19 W11607070 Arm, Sliding   (Replaces: W11213889) Special Order $ 28.96

20 W11715912 . Spring, Release Rod   (Replaces: 423107570871) In-Stock Immediately $ 8.27

21 W11724411 Nut, Speed   (Replaces: W10120233) In-Stock Immediately $ 60.47

22 461967825601 . Screw Appelez-nous -
23 W11646907 Housing, Upper Inverter   (Replaces: W11591019) Special Order $ 82.38

24 W11646906 Housing, Lower Inverter   (Replaces: W11591018) Appelez-nous -
25 W11334716 Vent, Top Microwave Special Order $ 64.81

26 W11754875 Sensor, Humidity   (Replaces: W11647874) Special Order $ 65.70

27 8205707 . Support, Bottom   (Replaces: 461967008461) In-Stock Immediately $ 68.79

28 W11732689 Hinge, Door   (Replaces: W11681073) Special Order $ 102.84

29 W11534564 Motor, Convection Fan   (Replaces: W11233698) In-Stock Immediately $ 105.70

30 W11344874 Cooling Fan Assembly   (Replaces: W11131760) In-Stock Immediately $ 191.74

31 W11578579 Inverter   (Replaces: W11504539) In-Stock Immediately $ 259.99

32 461967825971 . Screw Appelez-nous -
33 W11807875 . Screw   (Replaces: 461967825341) Appelez-nous -
34 W11690594 . Screw (shoulder)   (Replaces: 461967825781) Special Order $ 14.79

35 WPW10128850 . Bushing   (Replaces: 461967510191) In-Stock Immediately $ 142.08

36 W11700292 . Spring, Torsion   (Replaces: 461967570351) Special Order $ 72.30

37 W11684510 . Support   (Replaces: 461967750494) In-Stock Immediately $ 15.52

W11754863 Harness, Fan And Turntable   (Replaces: W11476496) Appelez-nous -
W11754864 Harness, Inverter   (Replaces: W11476511) Appelez-nous -
W11754865 Harness, Comm And Eol   (Replaces: W11476493) Appelez-nous -
W11754866 Harness, Main Upper Mwo   (Replaces: W11476494) In-Stock Immediately $ 267.48

W11754867 Harness, Main Lower Mwo   (Replaces: W11706181) Special Order $ 146.29

461967017481 Trim, Right Side (not Serviceable) Appelez-nous -
ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 Miscellaneous Parts Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

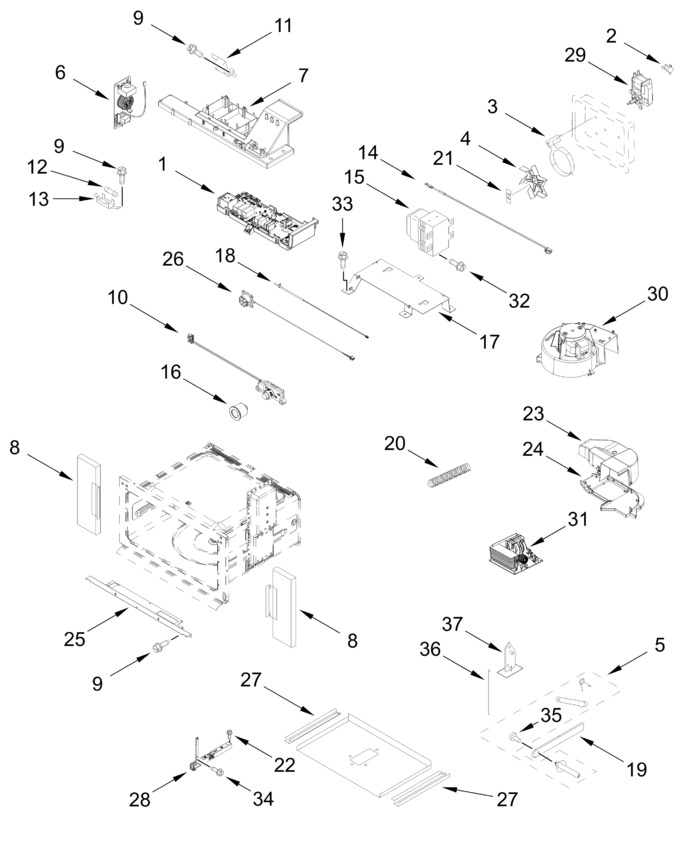

Diagram for KOEC930SJP00
