View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

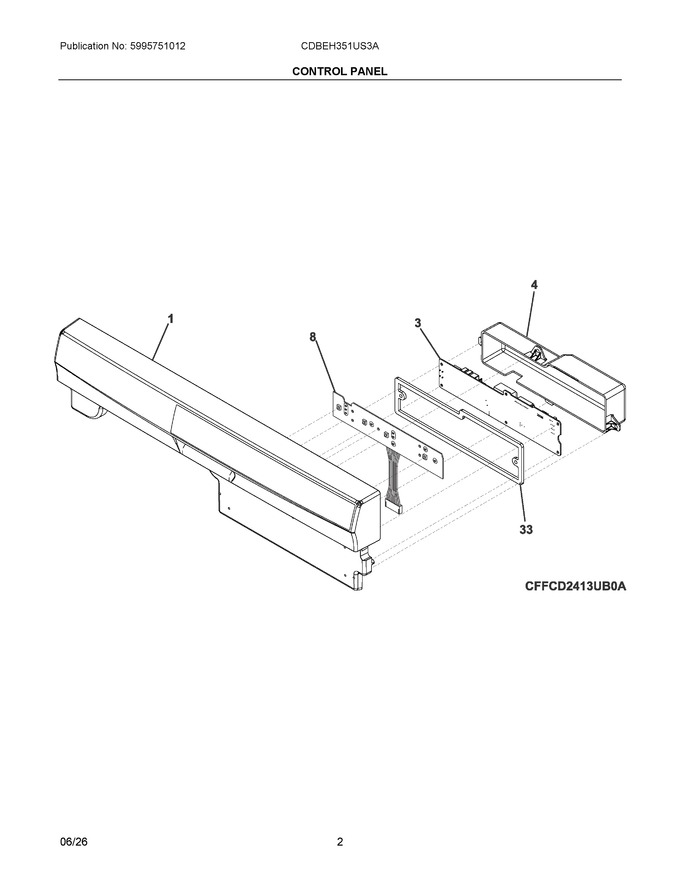

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538433 | Control Panel, Assembly, Black |
|
- | |||||
| 3 | 140217719107 | Pc Board, Control, K43g |
|
Immediately | $ 92.61 | ||||
| 4 | 5304535650 | Cover, Control Board, Main |
|
Immediately | $ 12.80 | ||||
| 8 | 5304535555 | Control Assembly, User Interface |
|
Immediately | $ 52.69 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 16.21 | |||||
| NI | 140290674013 | Wiring Harness, Main, W/turbidity |
|
$ 96.65 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
$ 7.88 |
