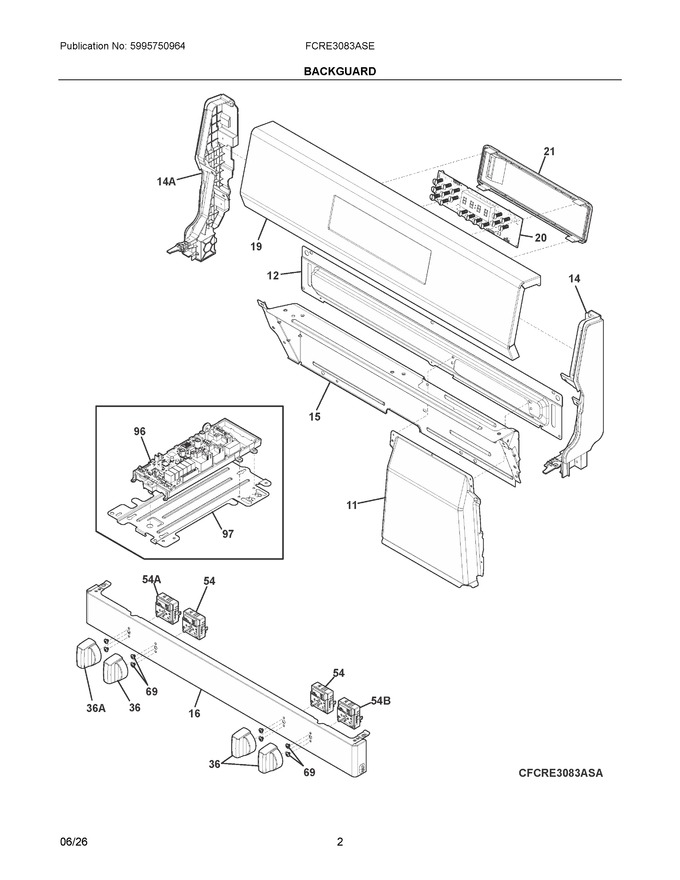

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304528376		Duct, Upper Exhaust, Black				$ 56.18
12	5304528377		Diffuser, Duct				$ 37.98
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 58.57
15	5304528226		Shield, Backguard, Black, Inner				$ 63.40
16	5304528476		Manifold Panel, Stainless				$ 158.10
19	5304528251		Control Panel, Assembly, Glass/steel, Stainless				$ 151.10
20	5304538859		Controller, Electronic, Oven,			Immediately	$ 139.07
21	5304534688		Cover, Control				$ 32.53
36	5304528072		Knob, Infinite Switch, Stainless, Single			Immediately	$ 43.60
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, Switch Mtg.			Immediately	$ 2.58
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 141.03
97	5304528372		Bracket, Ovc Board				$ 12.98
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 54.68
36A	5304514117		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 53.50
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 37.01
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 38.18
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
NI	5304535309		Harness, Wiring, Macs Panel To, User Interface				$ 21.71
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	5304536350		Harness-energy Regulator 5s			Immediately	$ 131.06
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
