SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - System

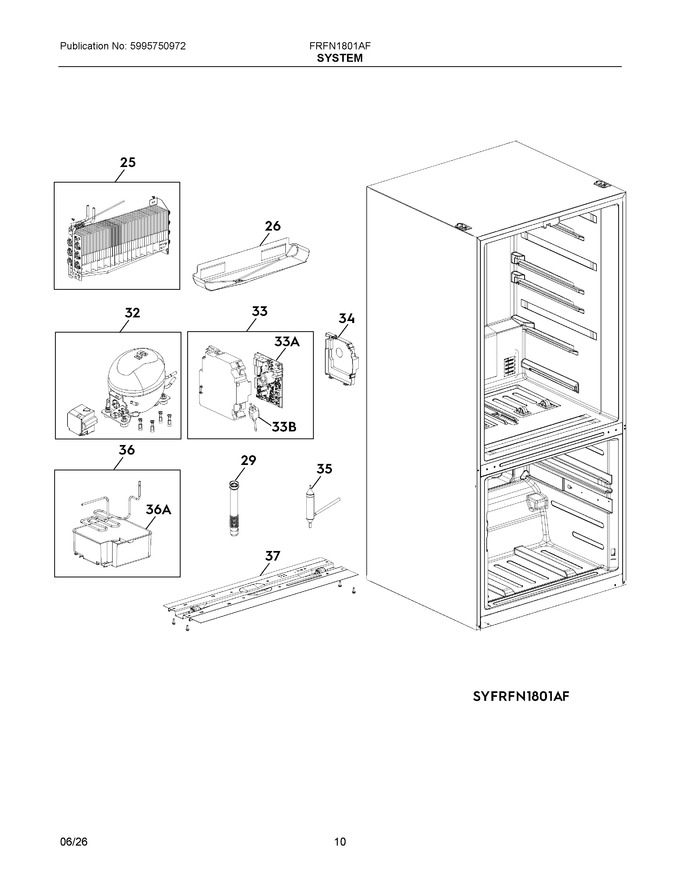

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	4056039516		Evaporator Assembly, W/defrost Heater		Appelez-nous	-
26	4056039532		Evaporator Tray, Drain		Appelez-nous	-
29	5304536985		Tube, Drain		Appelez-nous	-
32	4056039623		Compressor Assembly, W/inverter		Appelez-nous	-
33	4056039607		Main Electronic Board, Assembly, W/housing, Power Cord				$ 183.74
34	4056039615		Cover, Main Electronic, Board		Appelez-nous	-
35	4056039631		Filter Drier		Appelez-nous	-
36	4056039649		Drain Assembly, W/connector Pip				$ 27.67
37	4056039664		Base Assembly, Compressor, Plate		Appelez-nous	-
33A	4056044128		Configured Electronic, Power Board				$ 144.95
33B	5304536983		Power Cord		Appelez-nous	-
36A	4056039656		Tray Drain, Compressor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
