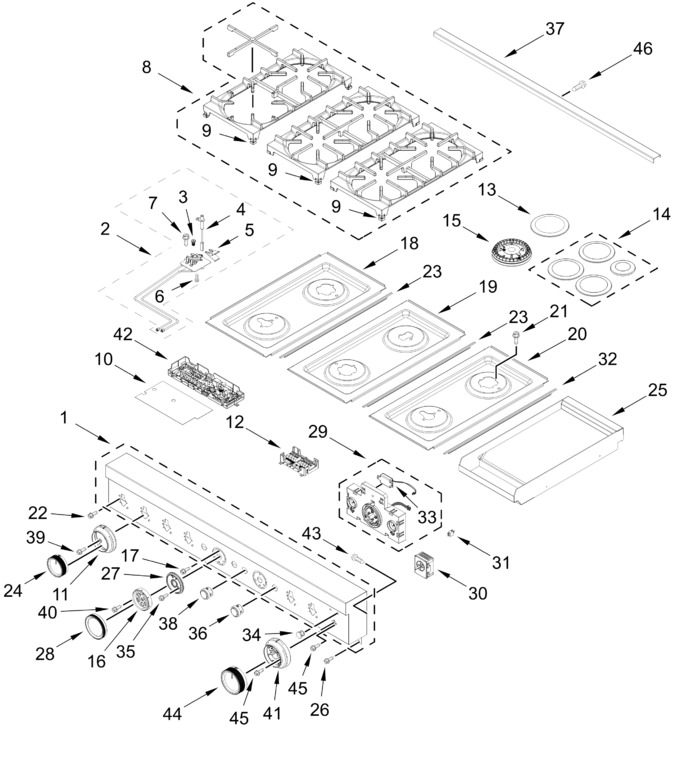

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11820194		Control Panel (juniper)   (Replaces: W11768467)		Appelez-nous	-
2	W11805919		Orifice Holder Assembly   (Replaces: W11775872)		Appelez-nous	-
3	ARIE067872F6F52DD2FD69D26241530A01D		Orifice (not Serviced, Must Order Orifice Holder Assembly)		Appelez-nous	-
4	W11788750		Igniter   (Replaces: W11759723)			Immediately	$ 35.81
5	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
6	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
7	3196172		Screw			Immediately	$ 13.47
8	W11789234		Grate Burner Kit				$ 565.75
9	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
10	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
11	W11820168		Bezel Assembly, Gas Burner (juniper)   (Replaces: W11801798)		Appelez-nous	-
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11576413		Cap, Stack Burner (black)   (Replaces: W11346163)				$ 89.25
14	W11789675		Cap, Burner (black, Set Of 4)   (Replaces: W11748806)		Appelez-nous	-
15	W11436986		Flame Spreader, Stack   (Replaces: W11348511)			Immediately	$ 71.73
16	W11821249		Knob, Oven Mode (juniper)   (Replaces: W11740400)		Appelez-nous	-
17	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
18	W11788773		Panel, Left Cooktop (black)   (Replaces: W11758655)		Appelez-nous	-
19	W11789677		Panel, Center Cootkop (black)   (Replaces: W11758657)				$ 425.24
20	W11789786		Panel, Right Cooktop (black)   (Replaces: W11758659)		Appelez-nous	-
21	W11788768		Screw   (Replaces: W11719156)		Appelez-nous	-
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W10271524		Trim, T-strip (black)				$ 212.34
24	W11794773		Knob, Dual (juniper)   (Replaces: W11732025)		Appelez-nous	-
25	ARI4865CFF8563D5F77A3C528079CFC39A7		Griddle Module Assembly (part Number Shown On Burner Box And Griddle Parts Page)		Appelez-nous	-
26	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
27	W11794777		Bezel Assembly, Oven (juniper)   (Replaces: W11738552)		Appelez-nous	-
28	W11794778		Knob, Oven Temperature (juniper)   (Replaces: W11740405)		Appelez-nous	-
29	W11789784		Interface, User   (Replaces: W11767393)		Appelez-nous	-
30	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
31	W10116114		Light, Indicator Housing			Immediately	$ 93.57
32	W10291193		Trim, L-strip		Appelez-nous	-
33	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
34	W10294500		Lens, Indicator Light				$ 7.69
35	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
36	W11790606		Push Button Start Assembly (juniper)   (Replaces: W11769832)		Appelez-nous	-
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11790603		Push Button Light Assembly (juniper)   (Replaces: W11769834)		Appelez-nous	-
39	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
40	WP486754		Screw   (Replaces: 246119)				$ 8.01
41	W11820188		Bezel, Griddle (juniper)   (Replaces: W11741957)		Appelez-nous	-
42	W11789789		Manager, Powermax Appliance   (Replaces: W11767301)		Appelez-nous	-
43	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
44	W11820189		Knob, Griddle (juniper)   (Replaces: W11732239)		Appelez-nous	-
45	7101P30960		Screw		Appelez-nous	-
46	7101P33860		Screw		Appelez-nous	-
	W11794774		Knob, Single (juniper)   (Replaces: W11731285)		Appelez-nous	-
	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	W11789780		Orifice Holder Assembly   (Replaces: W11731199)		Appelez-nous	-
	W11789779		Orifice Holder Assembly   (Replaces: W11731193)		Appelez-nous	-
	W11789781		Orifice Holder Assembly   (Replaces: W11731202)		Appelez-nous	-
	W11789783		Orifice Holder Assembly   (Replaces: W11731196)		Appelez-nous	-
	ARIC0A1423F8DB18A76A62C2589F952DA0B		(left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
	ARICC315D341C2410B1C23C8B42A71BD901		(left Rear, Left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	W11788752		Igniter   (Replaces: W11759742)		Appelez-nous	-
	ARI84ED65FEA174F07BF8F003F72E5F11AC		(left Front, Right Center Front)		Appelez-nous	-
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
	W11788751		Igniter   (Replaces: W11759741)		Appelez-nous	-
	ARI3CCC6EF4AF791FA50D2D2DAAC8BCDBD4		(for 2 Oven Knobs)		Appelez-nous	-
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	ARI1D437A95BB9951E88D2C823ABD70D6CC		(left Rear, Left Center Front, Right Center Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11805920		Orifice Holder Assembly   (Replaces: W11775873)		Appelez-nous	-
	ARIC0C4CF68E0979263FD554FE879AFA7E5		(for Both Ovens)		Appelez-nous	-
