Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10537403L Assy Frz. Door Appelez-nous -
2 10183971 Trim Door Shelf Appelez-nous -
3 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.19

4 WP12550116Q Gasket,fz Dr(white)   (Replaces: 10456810) In-Stock Immediately $ 122.85

5 10513601 Assy, Liner Frz Dr (bm) Appelez-nous -
6 10462201 Assy, Liner Frz Dr (bm) Appelez-nous -
7 C8944911 Assy, Frz Dr Hndl Appelez-nous -
8 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.00

9 10419005 Retainer, Door Appelez-nous -
10 10825302 Assy,hinge B-btm Appelez-nous -
11 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.21

12 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 7.81

13 10447901 Shim, Btm Hinge Appelez-nous -
13 10447902 Shim Hinge Appelez-nous -
14 10433504 Hinge-center Appelez-nous -
15 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.27

16 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

17 M0310338 Plug Button Almond Appelez-nous -
18 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 7.76

19 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.02

20 M0219730 Screw Special Order $ 7.65

21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 7.76

22 10447102 Stop, Door Appelez-nous -
23 10562206 Shim, Ctr. Hinge Appelez-nous -
23 10562205 Shim, Ctr. Hinge Appelez-nous -
23 10562204 Kit, Ctr Hinge Shim Appelez-nous -
24 W11177593 Brake, Foot   (Replaces: 10354001) Special Order $ 11.60

25 10202001 Clip, Retainer Appelez-nous -
26 10304107 Extrs, Shelf Appelez-nous -
27 10377802 Shim,fz Dr Handle Appelez-nous -
28 10391302 Support, Pin Appelez-nous -
29 10462704 Cover-l Hinge Lw Appelez-nous -
30 M0310331 Plug, Button Almond Appelez-nous -
31 876370 Insulation Bott (1= 1ft)   (Replaces: B0523588) Special Order $ 231.56

32 M0310730 Plug Button (almond) Appelez-nous -
NOTE: R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed Sys Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

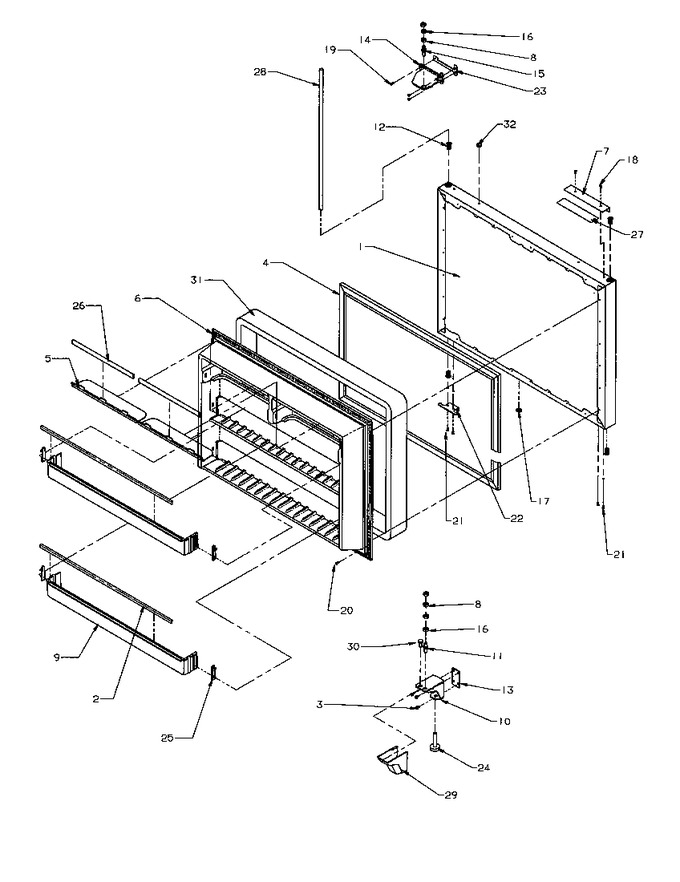

Diagram for BX22S5L (BOM: P1196701W L)
