Diagram for 02 - Cabinet/drum
02 - Cabinet/drum

Diagram for 03 - Front Panel/lint Filter
03 - Front Panel/lint Filter

Diagram for 04 - Controls/top Panel
04 - Controls/top Panel

Diagram for 05 - Motor
05 - Motor

Diagram for 06 - Burner
06 - Burner

Diagram for 07 - Wiring Diagram
07 - Wiring Diagram


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 140203380112 Board Assembly, Ui Linear Special Order $ 153.74

5 5304505345 Seal, Display Area Special Order $ 17.19

19 5304505441 Screw, Pph B, 6-20x.375 Special Order $ 7.23

24 5304535702 Top Panel, Glacier Blue Special Order $ 201.30

29 5304535777 Console Assembly, W/overlay Appelez-nous -
NI 5304521443 Harness, Wiring, Main In-Stock Immediately $ 222.93

NI 137150200 Terminal Block Kit, Main Special Order $ 35.44

NI 131168200 Screw, Pan Head, 8-18b X 0.31 In-Stock Immediately $ 15.75


    View Diagram in Separate Window     Print Icon   Print Part List

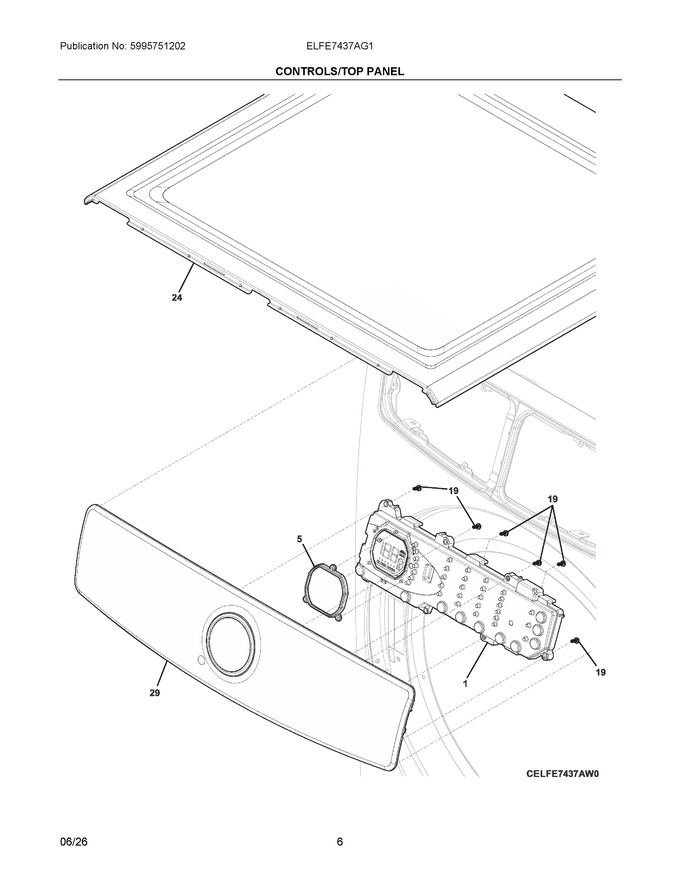

Diagram for ELFE7437AG1
