SELECT A DIAGRAM

01 - Cover Sheet

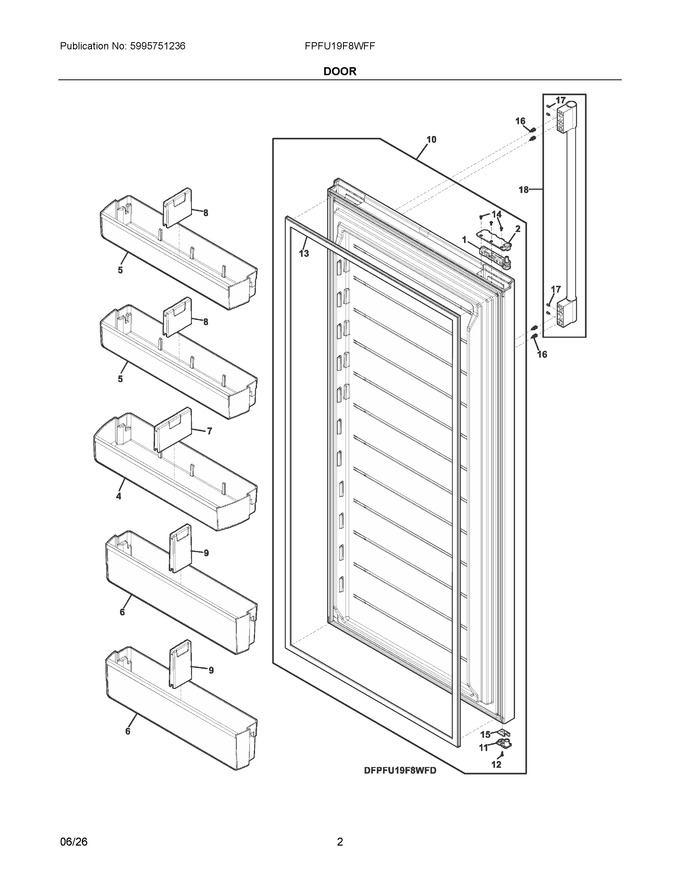

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524644		Closer Assembly, Door, Lh Upper			Immediately	$ 105.61
2	5304524624		Cover, Door Cap, Gray, Lh, Closer Side				$ 16.07
4	5304524631		Bin, Door, Galon   (Replaces: 5304529220)			Immediately	$ 165.86
5	5304529219		Bin, Door, 2 Liter			Immediately	$ 193.11
6	5304529221		Bin, Door, Tall Items			Immediately	$ 168.23
7	5304538167		Divider, Bin, Gallon				$ 21.72
8	5304538164		Divider, Bin, 2 Liter				$ 18.64
9	5304538168		Divider, Bin, Tall Item				$ 17.37
10	5304524739		Door Assembly, Lh Swing, Stainless				$ 782.88
11	5304524745		Bearing, Door, Lower			Immediately	$ 8.84
12	241953903		Screw, Door Stop, Lower				$ 5.63
13	140190906861		Gasket, Door, Gray   (Replaces: 5304524887)			Immediately	$ 125.04
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
15	5304524768		Stop, Door, Lower Bearing				$ 12.05
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
17	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
18	5304535090		S/a Pur-handle Verticle Pro		Appelez-nous	-
NI	241601002		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
