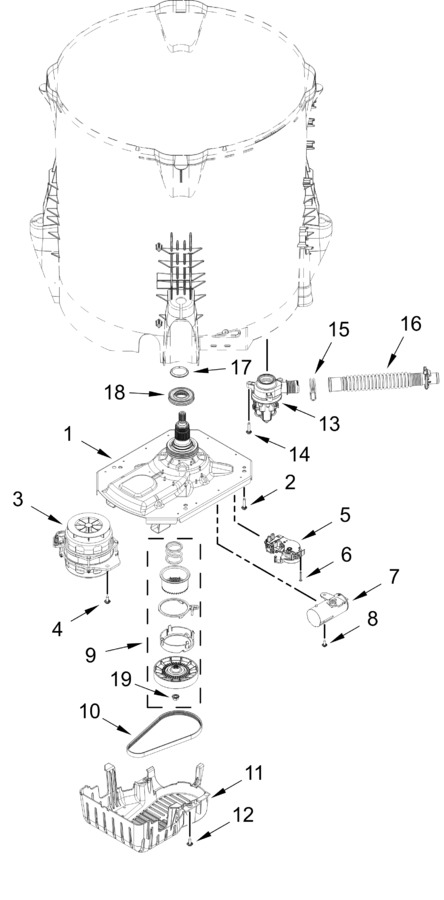

Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449840 | Gearcase Assembly (Replaces: W11164183) |
|
Immediately | $ 302.88 | ||||
| 2 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 3 | W11026785 | Motor, Drive (Replaces: W10677723) |
|
Immediately | $ 238.55 | ||||
| 4 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 5 | W11481722 | Actuator, Shift (Replaces: W11398781) |
|
Immediately | $ 157.63 | ||||
| 6 | W11596033 | Screw (Replaces: 9741052) |
|
$ 13.55 | |||||
| 7 | W11395618 | Capacitor, Motor Run (Replaces: W11162560) |
|
Immediately | $ 108.62 | ||||
| 8 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 | |||||
| 9 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 | ||||
| 10 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 52.43 | ||||
| 11 | W11778479 | Cover Pulley Shield (Replaces: W11696628) |
|
$ 64.92 | |||||
| 12 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 13 | W11399437 | Drain Pump Assembly (Replaces: W11259498) |
|
Immediately | $ 207.92 | ||||
| 14 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 15 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 16 | W11735315 | Inner Drain Hose Assembly (Replaces: W11687191) |
|
$ 47.70 | |||||
| 17 | W11553312 | Washer, Thrust (Replaces: W11218170) |
|
Immediately | $ 15.79 | ||||
| 18 | W11629599 | Seal, Tub (Replaces: W10447972) |
|
$ 52.76 | |||||
| 19 | W10759923 | Nut (Replaces: W10604214) |
|
$ 7.64 |
