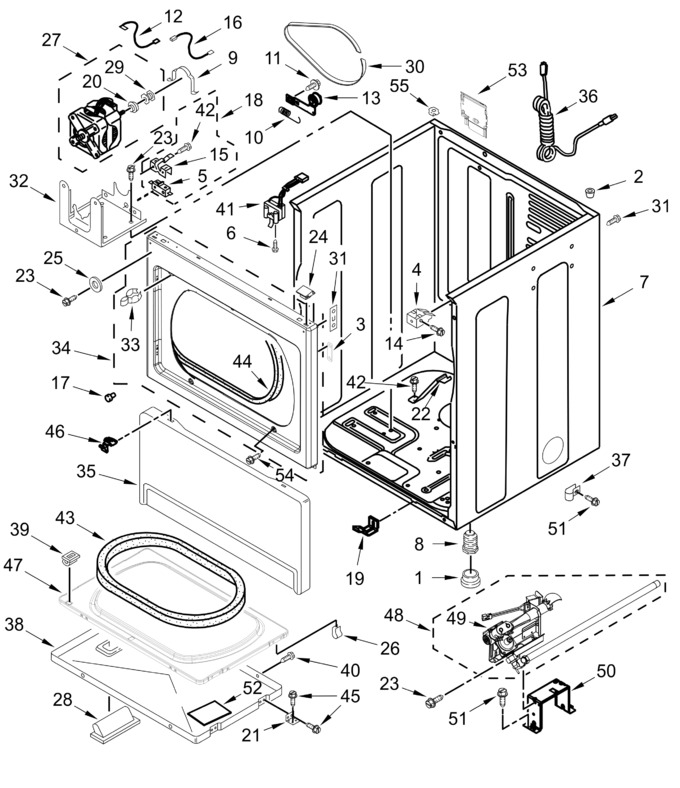

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Bulkhead Parts
Burner Assembly Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 2 | 356674 | Cone, Wedge |
|
$ 33.19 | |||||
| 3 | W11481394 | Cover, Hinge Hole (white) (Replaces: W11308618) |
|
$ 22.39 | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 5 | 279782 | Switch, Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 440.17 | |||||
| 8 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 24.69 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 13 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 87.96 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 15 | WP8066120 | Lever, Belt Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 16 | W10167612 | Wire, Belt Switch |
|
$ 13.42 | |||||
| 17 | 693152 | Bumper |
|
$ 11.51 | |||||
| 18 | 279782 | Assembly, Switch (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 21 | WPW10279703 | Hinge And Pin Assembly (silver) (Replaces: W10279703) |
|
$ 75.83 | |||||
| 22 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 23 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 24 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 25 | W11089212 | Washer (Replaces: 3392186) |
|
$ 11.06 | |||||
| 26 | WPW10131123 | U-nut (Replaces: W10131123) |
|
$ 8.10 | |||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 28 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 79.54 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 34 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 386.67 | |||||
| 35 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 36 | W10869140 | Cord, Power |
|
- | |||||
| 37 | 3387561 | Clamp, Pipe |
|
- | |||||
| 38 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 272.34 | |||||
| 39 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 40 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 41 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 43 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 137.13 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 301.37 | |||||
| 48 | W11676914 | Burner Assembly (Replaces: W11566859) |
|
- | |||||
| 49 | 279923 | Valve, Gas (Replaces: 8281911) |
|
Immediately | $ 286.03 | ||||
| 50 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 51 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 52 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 30.95 | |||||
| 53 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 440.17 | |||||
| 54 | W10879744 | Screw |
|
- | |||||
| 55 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 |
