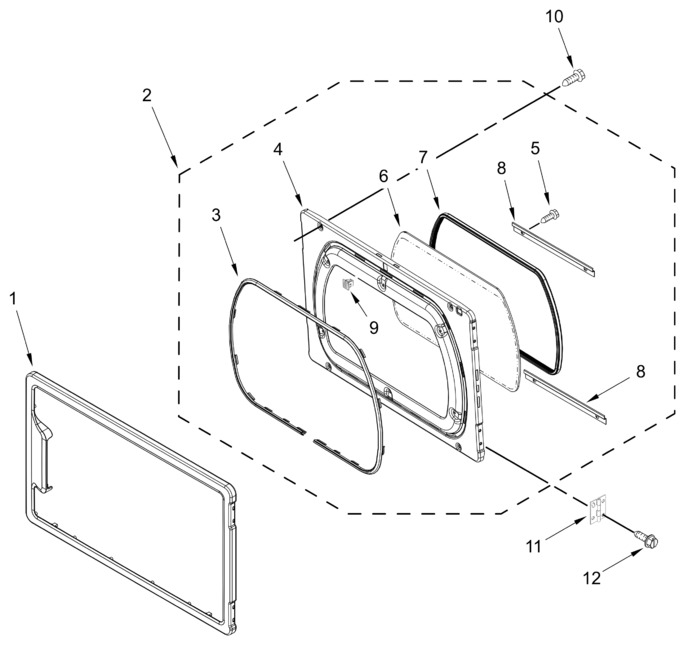

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10284127 | Assembly, Door Outer (white) (Replaces: W10284127) |
|
$ 211.76 | |||||
| 2 | W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 198.95 | |||||
| 3 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 123.92 | |||||
| 4 | W10822056 | Inner Door (white) (Replaces: W10470571) |
|
$ 208.70 | |||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.68 | |||||
| 6 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 251.06 | |||||
| 7 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 27.02 | |||||
| 8 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 9 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 10 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.19 | ||||
| 11 | WPW10279703 | Hinge And Pin Assembly (silver) (Replaces: W10279703) |
|
$ 72.22 | |||||
| 12 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.57 |
