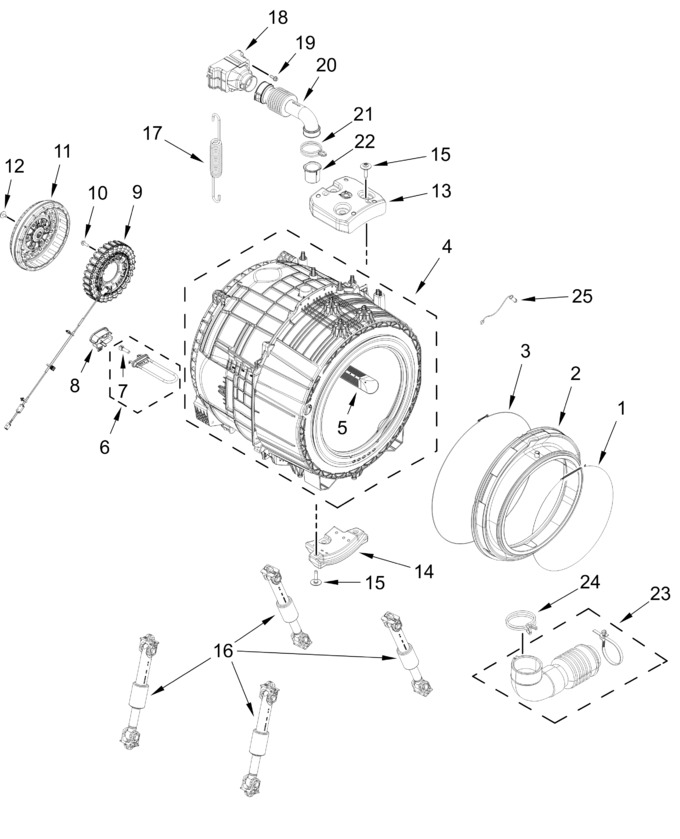

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Dispenser Parts
Door Parts
Optional Parts (not Included)
Top And Cabinet Parts
Tub And Basket Parts
Water System Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 26.94 | ||||
| 2 | W11842317 | Bellow (Replaces: W11711533) |
|
- | |||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 22.35 | ||||
| 4 | W11824595 | Assembly, Tub And Drum (Replaces: W11772381) |
|
- | |||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11198668) |
|
Immediately | $ 107.17 | ||||
| 6 | W11314664 | Heater Assembly (Replaces: W10918779) |
|
Immediately | $ 184.95 | ||||
| 7 | W11314664 | Sensor, Ntc (Replaces: W10919909) |
|
Immediately | $ 184.95 | ||||
| 8 | W11314776 | Shield, Heater (Replaces: W10909418) |
|
$ 90.43 | |||||
| 9 | W11833000 | Motor Assembly (Replaces: W11803561) |
|
$ 335.72 | |||||
| 10 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 14.04 | |||||
| 11 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 178.95 | ||||
| 12 | W11557803 | Screw, Rotor (Replaces: W11354072) |
|
Immediately | $ 9.93 | ||||
| 13 | W11815701 | Counterweight, Top (Replaces: W11517116) |
|
- | |||||
| 14 | W11815702 | Counterweight, Bottom (Replaces: W11517117) |
|
- | |||||
| 15 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 14.13 | ||||
| 16 | W11316766 | Damper Assembly (Replaces: W11117022) |
|
Immediately | $ 95.95 | ||||
| 17 | W11771999 | Spring, Suspension (Replaces: W11714799) |
|
Immediately | $ 14.00 | ||||
| 18 | W11316248 | Enclosure, Vent (Replaces: W10919157) |
|
Immediately | $ 187.05 | ||||
| 19 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.28 | |||||
| 20 | W11316274 | Hose, Ventilation (Replaces: W10919155) |
|
Immediately | $ 33.79 | ||||
| 21 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 11.53 | |||||
| 22 | W11557921 | Deflector, Vent Port (Replaces: W11495086) |
|
Immediately | $ 15.98 | ||||
| 23 | W11599075 | Hose, Ventilation (Replaces: W11495084) |
|
$ 22.84 | |||||
| 24 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 25 | W11315707 | Drum Light (Replaces: W11040364) |
|
$ 114.79 | |||||
| W11739821 | Baffle, Drum (pet Filter) (Replaces: W11582737) |
|
$ 110.41 |
