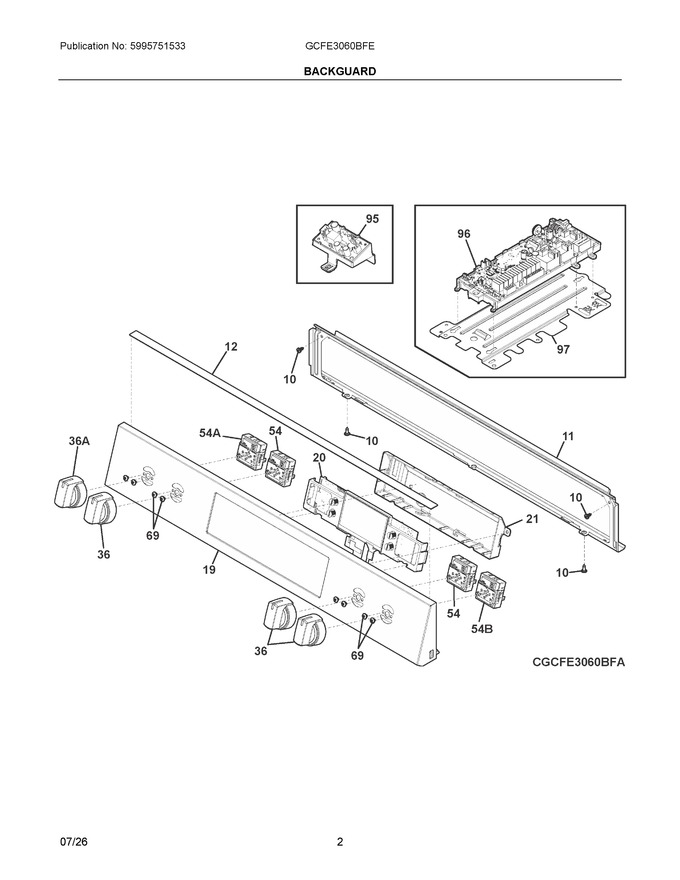

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304528554		Seal, Smoothtop			Immediately	$ 35.40
19	5304535365		Control Panel, Assembly, Glass/steel, Ez Care Stnless				$ 145.70
20	5304538605		Controller, Electronic, Oven, Ui730			Immediately	$ 268.58
21	5304533954		Housing, Control		Appelez-nous	-
36	5304528709		Knob, Infinite Switch, Single			Immediately	$ 89.07
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 4.16
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing				$ 96.61
96	140171069028		Pc Board, Assembly,, Ovc -pur, Back			Immediately	$ 162.81
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
36A	5304528710		Knob, Infinite Switch, Dual				$ 81.22
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 37.01
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 38.18
NI	5304535366		Harness, Wiring, Knobs, Backlit				$ 82.99
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304535876		Harness-energy Regulator 5s, * #				$ 123.04
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIA	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
