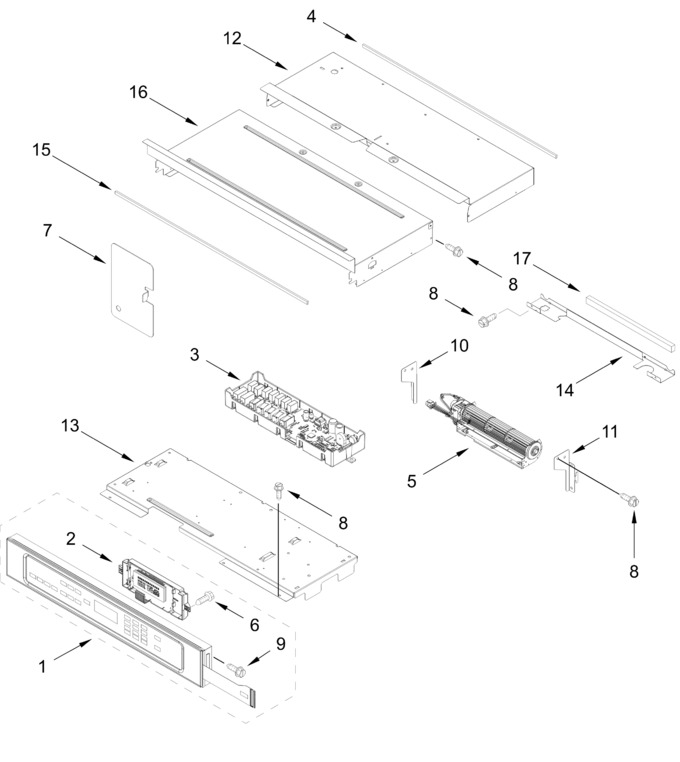

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11818158		Control Panel Assembly (stainless)		Appelez-nous	-
2	W10803991		Interface (maxwell), User Board   (Replaces: W10752315)			Immediately	$ 420.04
3	W11837059		Control, Maxwell   (Replaces: W11815721)		Appelez-nous	-
4	W10728475		Gasket, Rubber (380mm)				$ 38.13
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	7101P40360		Screw		Appelez-nous	-
7	W11533682		Cover, Wifi		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10655462		Bracket, Blower (right)		Appelez-nous	-
12	W11223325		Cover, 30 In Chassis Top (back)				$ 85.77
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11754858		Divider, Chassis Back   (Replaces: W11664750)		Appelez-nous	-
15	W11226314		Gasket, Rubber (735mm)   (Replaces: W11162063)		Appelez-nous	-
16	W11789693		Cover, 30 In Chassis Top (front)   (Replaces: W11767801)		Appelez-nous	-
17	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
	W10487999		Clip, Harness				$ 21.12
	4450800		Screw, Grounding				$ 13.47
	W11837007		Harness, Door Latch   (Replaces: W11814358)		Appelez-nous	-
	W11501784		Harness, Main		Appelez-nous	-
	4448664		Clamp, Conduit				$ 21.41
	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11818417		Bracket, Harness   (Replaces: W11739132)		Appelez-nous	-
	W11233570		Harness, Console			Immediately	$ 234.66
	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 15.39
