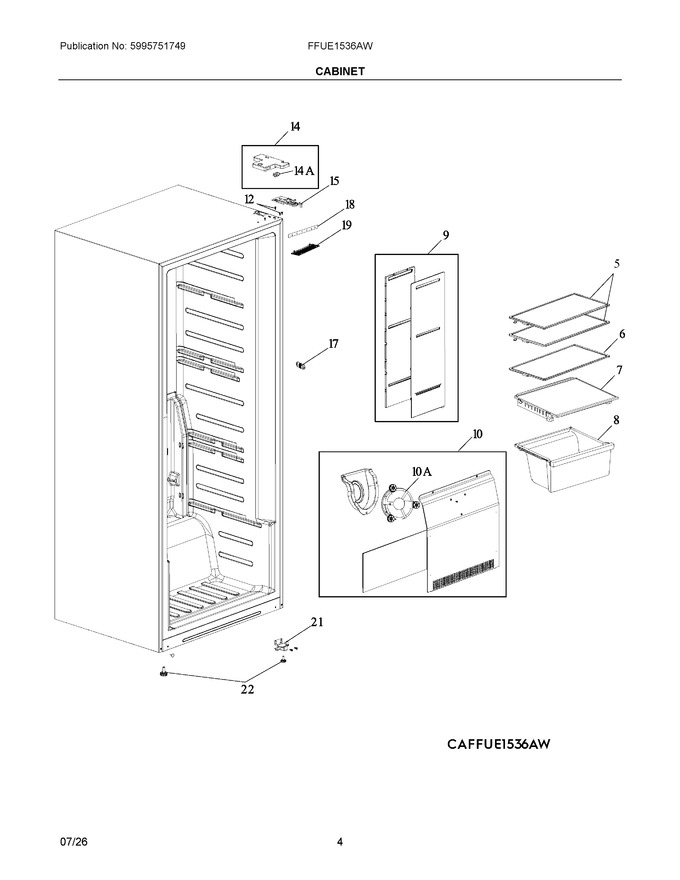

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 4056050521 | Glass Shelf Assembly, Upper |
|
- | |||||
| 6 | 4056050539 | Glass Shelf Assembly, Middle |
|
- | |||||
| 7 | 4056050547 | Glass Shelf Assembly, Lower |
|
- | |||||
| 8 | 4056050554 | Drawer Assembly |
|
- | |||||
| 9 | 4056049960 | Air Duct Assembly, Upper Cabinet, Freezer |
|
- | |||||
| 10 | 4056050562 | Air Duct Assembly, Evaporator Cove, W/fan |
|
- | |||||
| 12 | 5304480019 | Screw, Tapping-locking |
|
$ 7.83 | |||||
| 14 | 5304523667 | Cover Assembly, Hinge, Upper, W/switch |
|
- | |||||
| 15 | 4056050596 | Hinge Assembly, Upper Cabinet |
|
- | |||||
| 17 | 4056050612 | Sensor Cover, Freezer Chamber |
|
- | |||||
| 18 | 5304523671 | Pc Board, Led Light |
|
- | |||||
| 19 | 4056050604 | Lamp Cover Assembly |
|
- | |||||
| 21 | 4056050620 | Hinge Assembly, Lower Cabinet |
|
- | |||||
| 22 | 5304492659 | Foot, Adjustable, Cabinet |
|
- | |||||
| 10A | 4055976973 | Fan Motor, Assembly, Air Duct |
|
- | |||||
| 14A | 5304523668 | Switch, Light |
|
$ 19.62 | |||||
| NI | 5304515161 | Sensor, Thermistor |
|
Immediately | $ 16.99 |
