View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

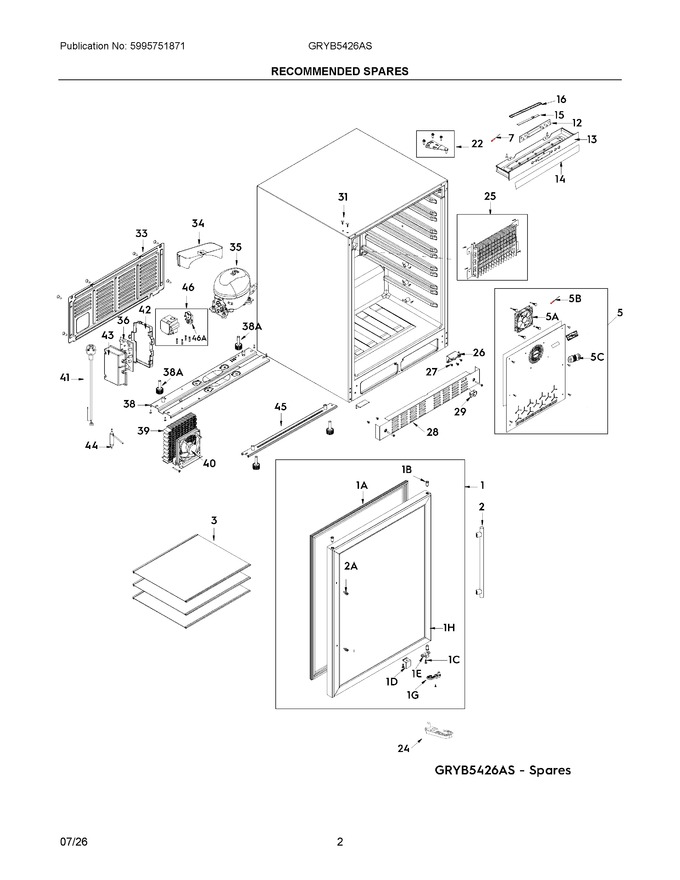

01 - Cover Sheet
02 - Recommended Spares
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056080700 | Door Assembly Complete, Glass, Stainless |
|
- | |||||
| 2 | 5304513164 | Handle, Door |
|
$ 228.77 | |||||
| 3 | 5304520288 | Shelf Assembly, Glass |
|
$ 160.02 | |||||
| 5 | 4056085337 | Air Duct, Assembly, Refrigerator, W/ Fan Motor |
|
- | |||||
| 7 | 4056085360 | Harness, Control Panel |
|
- | |||||
| 12 | 4056085378 | Display And Control Board, Pcb |
|
- | |||||
| 13 | 4056085386 | Cover Assembly, Display & Control Board |
|
- | |||||
| 14 | 4056085402 | Display Board Overlay, Sticker |
|
- | |||||
| 15 | 5304513178 | Lamp, Led |
|
$ 60.67 | |||||
| 16 | 5304513179 | Cover, Lamp, Vertical |
|
- | |||||
| 22 | 4056079504 | Upper Hinge, Assembly |
|
- | |||||
| 24 | 4056085410 | Closer Door |
|
- | |||||
| 25 | 4056085444 | Evaporator Assembly |
|
- | |||||
| 26 | 4056085485 | Hinge Assembly, Lower, Right |
|
- | |||||
| 27 | 5304480019 | Screw, Tapping-locking |
|
$ 7.83 | |||||
| 28 | 5304520286 | Grill, Toe Plate |
|
$ 81.14 | |||||
| 29 | 5304479794 | Switch, Lamp/light |
|
Immediately | $ 53.87 | ||||
| 31 | 5304479779 | Plug, Hinge Hole, Cabinet |
|
$ 8.45 | |||||
| 33 | 4056035092 | Cover Rear, Compressor |
|
- | |||||
| 34 | 5304513186 | Tray, Drain |
|
$ 44.65 | |||||
| 35 | 4056079496 | Compressor |
|
- | |||||
| 36 | 4056085527 | Configured Electronic, Power Board |
|
- | |||||
| 38 | 5304513189 | Base Panel, Compressor Mtg. |
|
$ 79.62 | |||||
| 39 | 4056079512 | Condenser Assembly |
|
- | |||||
| 40 | 4056079637 | Motor, Condenser Fan |
|
- | |||||
| 41 | 5304536983 | Power Cord |
|
- | |||||
| 42 | 4056085543 | Cover Assembly, Main Electronic, Board |
|
- | |||||
| 43 | 4056085550 | Housing Assembly, Main Electronic, Board |
|
- | |||||
| 44 | 4056039631 | Filter Drier |
|
- | |||||
| 45 | 4056085568 | Base Panel, Front, Bottom |
|
- | |||||
| 46 | 4056085576 | Compressor Starter, Assembly, W/cover Electricals |
|
- | |||||
| 1A | 4056080718 | Gasket Door |
|
- | |||||
| 1B | 5304513161 | Bearing, Top Hinge |
|
$ 2.83 | |||||
| 1C | 4056085246 | Screw, Lower Hinge |
|
- | |||||
| 1D | 5304513162 | Stop, Door, Light Switch |
|
$ 18.95 | |||||
| 1E | 5304479790 | Stop, Door |
|
$ 10.63 | |||||
| 1G | 4056085279 | Closing Device, Door |
|
- | |||||
| 1H | 4056085329 | Glass Door |
|
- | |||||
| 2A | 5304513163 | Screw, Shoulder, (2), Handle Mtg. |
|
Immediately | $ 34.89 | ||||
| 38A | 5304513190 | Leg, Leveling |
|
$ 32.62 | |||||
| 46A | 4056085592 | Compressor Starter |
|
- | |||||
| 5A | 4056085345 | Motor, Fan, Evaporator |
|
- | |||||
| 5B | 4056085352 | Harness Evaporator, W/sensor |
|
- | |||||
| 5C | 5304479805 | Cover, Temp Sensor |
|
Immediately | $ 49.15 |
