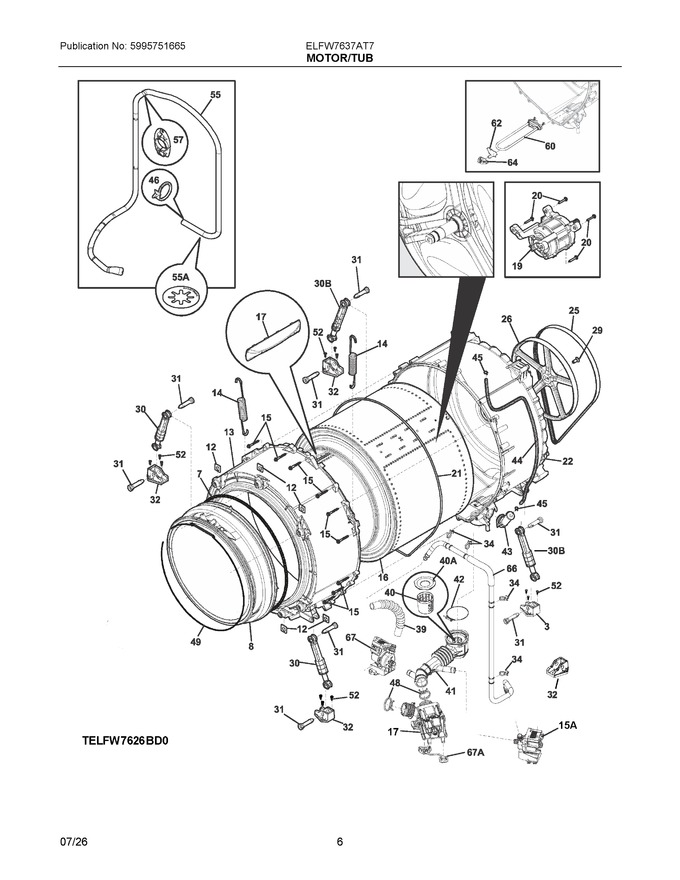

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536825		Drum, Assembly, 1200			Immediately	$ 307.27
3	134363200		Bracket, Shock Mtg.				$ 21.26
7	134616200		Spring, Boot Retainer			Immediately	$ 54.75
8	140296296043		Bellows, Door Boot				$ 145.33
12	5304505175		Plate, Conterweight, (7), W/nut Insert				$ 14.46
13	5304531937		Shell, Tub, Front		Appelez-nous	-
14	5304505117		Spring, Tub Supsension, (2)			Immediately	$ 78.17
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 17.33
17	137263600		Vane			Immediately	$ 58.97
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	140285511014		Motor, Washer			Immediately	$ 151.21
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 13.39
21	5304522569		Seal, Tub Shell			Immediately	$ 65.07
22	5304505157		Shell, Outer Tub, Rear, W/bearing, Seal			Immediately	$ 529.35
25	140297501011		Belt, Elastic, Poly-v		Appelez-nous	-
26	5304514822		Pulley, Drum Drive, Rear			Immediately	$ 203.76
29	5304505380		Bolt, W/washer, M10 X 1.5			Immediately	$ 38.76
30	137412701		Shock Absorber, Dual Stage			Immediately	$ 88.10
31	5304532011		Pin, Shock Mtg.			Immediately	$ 8.84
32	134363200		Bracket, Shock Mtg.				$ 21.26
33	134160900		Screw, Washer Hd, 10-16ab X 0.75				$ 13.39
34	5304528020		Cable Tie, Push Mount				$ 10.45
39	5304505163		Pipe, Cw Flow				$ 45.95
40	5304505165		Filter, Pump				$ 18.48
41	140026855035		Hose, Coin Trap, Tub To Pump				$ 39.48
42	134737300		Clamp, Hose				$ 22.37
43	5304535707		Air Chamber, Assembly		Appelez-nous	-
44	5304535282		Hose, Pressure Switch   (Replaces: 5304505210)				$ 37.98
45	137087500		Clamp, Hose				$ 11.25
46	134261300		Clip, Drain Hose, Push-mount				$ 13.39
48	5304536802		Clamp, Hose			Immediately	$ 4.46
49	134616300		Clamp, Bellows, Spring Held			Immediately	$ 39.38
50	5304536803		Clamp, Hose, Wire				$ 4.46
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
55	137629208		Drain Hose, Assembly, One Piece, W/cable Ties			Immediately	$ 75.68
57	134641100		Bracket, Drain Hose Mtg, Rear				$ 22.05
60	5304534256		Element, Heating, 1000w, W/ntc				$ 100.78
62	134642300		Support, Heating Element				$ 22.31
64	5304505156		Cover, Heater Support				$ 17.37
66	5304526694		Hose, Recirculating, Pipe, W/clamps			Immediately	$ 54.56
15A	5304514769		Pump Assembly, Circulation   (Replaces: 5304509040)			Immediately	$ 242.53
17A	5304514775		Pump Assembly, Drain, Jet System   (Replaces: 5304509619)			Immediately	$ 238.57
30A	140251904011		Hose, Inlet, Dispenser		Appelez-nous	-
30B	137412601		Shock Absorber, Single Stage			Immediately	$ 63.93
40A	5304505169		Cover, Filter			Immediately	$ 21.69
55A	137385100		Ring, Anti-syphon				$ 15.75
64A	5304505439		Screw, Heater Cover				$ 10.45
67A	137297000		Pad, Pump				$ 57.49
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
NI	134637200		Screw, #10-16x1.125, Hexwasher Head				$ 15.75
NIA	131931202		Dampener, Vibration, Foam				$ 19.28
NIA	137110800		Cushion, Shock Bracket, Left Rear				$ 14.96
NIB	5304505433		Pad, Rubber				$ 16.87
