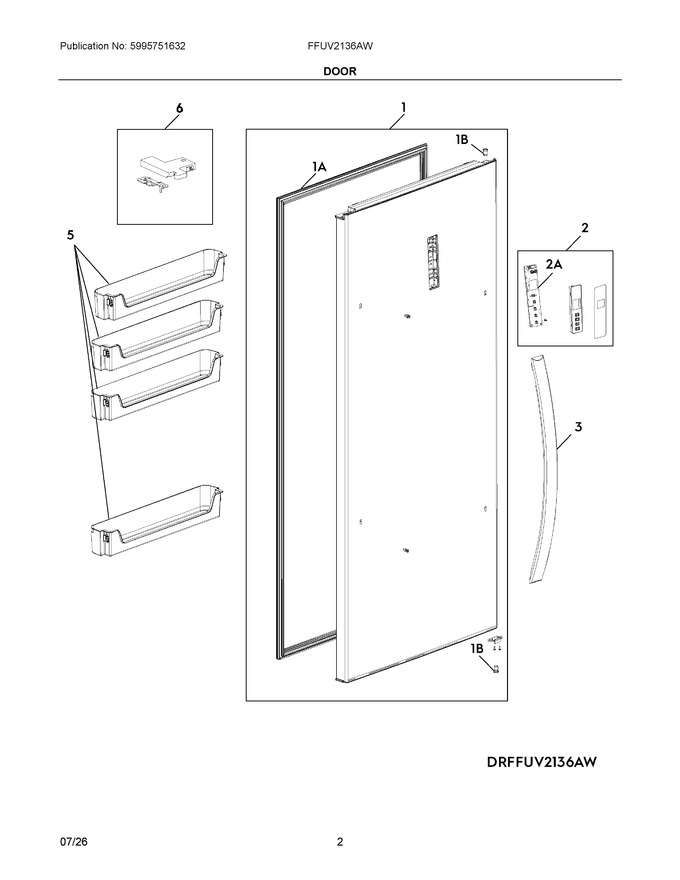

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056045059 | Door Assembly Complete, Freezer, White |
|
$ 303.43 | |||||
| 2 | 4056045117 | Control And Display Board, Assembly |
|
- | |||||
| 3 | 4056039672 | Handle Door, Stainless |
|
$ 168.02 | |||||
| 5 | 4056043856 | Bin, Door Shelf, Assembly |
|
$ 25.07 | |||||
| 6 | 4056046305 | Door Reversal, Support, Components |
|
$ 23.11 | |||||
| 1A | 4056044094 | Gasket Assembly, Freezer Door |
|
Immediately | $ 69.88 | ||||
| 1B | 5304523524 | Sleeve, Hinge Pin, Lower |
|
Immediately | $ 8.34 | ||||
| 2A | 4056045075 | User Interface Board, Control Panel |
|
- | |||||
| NI | 4056058532 | Handle Screw Kit |
|
Immediately | $ 14.82 |
