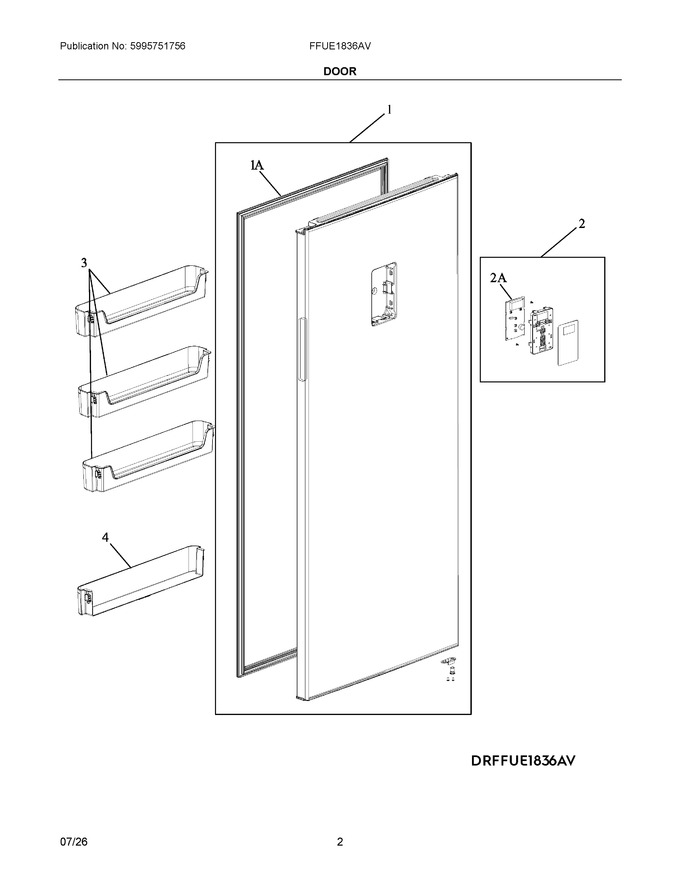

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056049861 | Door Assembly Complete, Freezer, Stainless |
|
- | |||||
| 2 | 4056049887 | Control & Display Board, Assembly |
|
- | |||||
| 3 | 4056049903 | Bin, Door Shelf, Upper |
|
- | |||||
| 4 | 4056049911 | Bin, Door Shelf, Lower |
|
- | |||||
| 1A | 4056049879 | Gasket Assembly, Freezer, Door |
|
- | |||||
| 2A | 4056049895 | User Interface Board, Control Panel |
|
- |
