SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

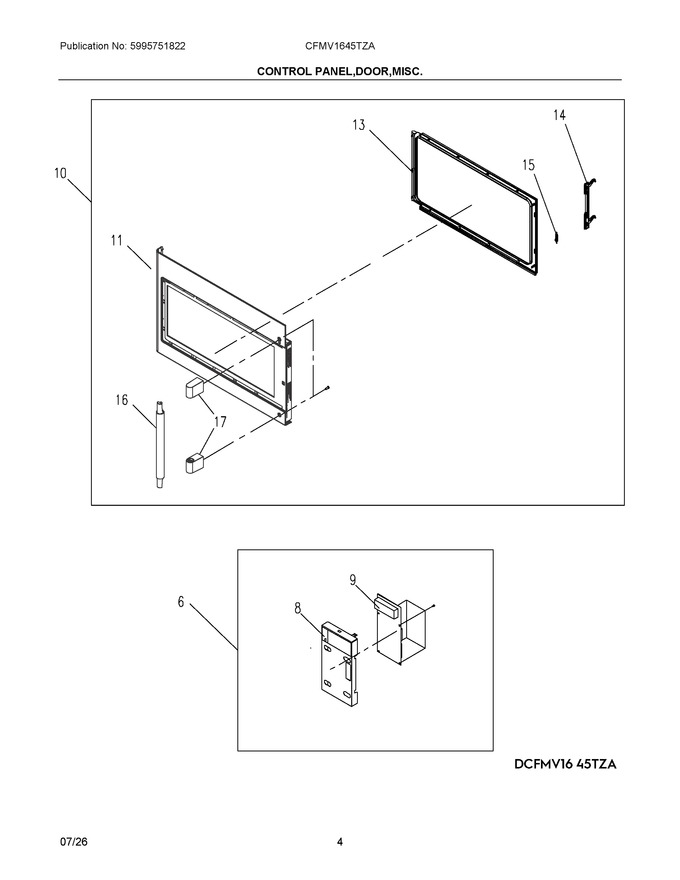

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304525304		Control Assembly, Black Stainless				$ 757.63
8	5304523973		Shield, Pc Board				$ 32.94
9	5304525309		Pc Board, Main, Control/power				$ 387.98
10	5304525291		Door Assembly, Black Stainless				$ 514.72
11	5304525294		Panel, Outer Door, Black Stainless		Appelez-nous	-
13	5304509431		Frame, Choke Cover, Inner Door				$ 44.18
14	5304525298		Latch, Door			Immediately	$ 12.06
15	5304521953		Spring, Door Latch				$ 8.03
16	5304525299		Handle, Door, Black Stainless				$ 192.15
17	5304525106		Holder, Handle, Black Stainless		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
