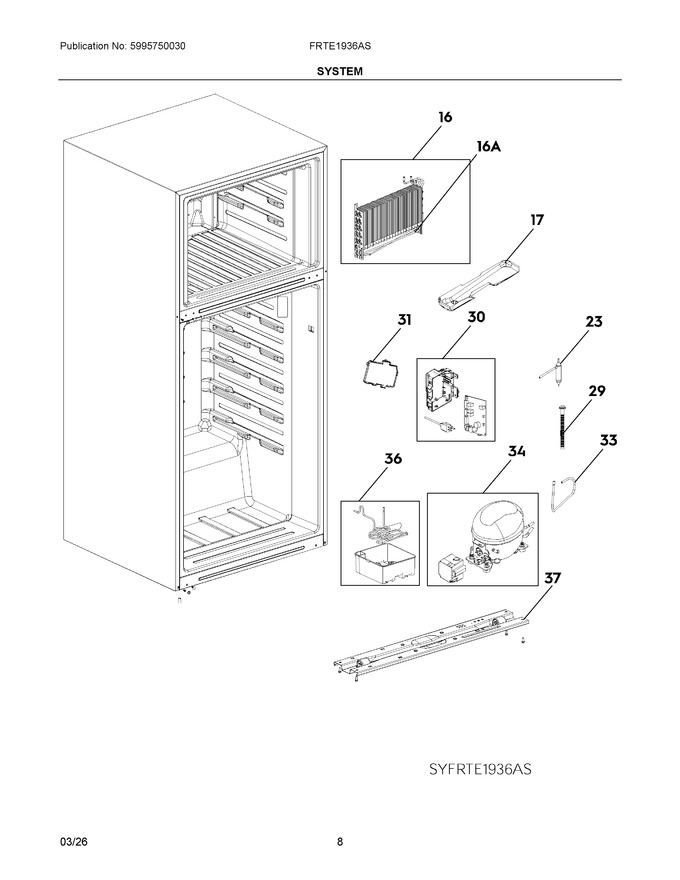

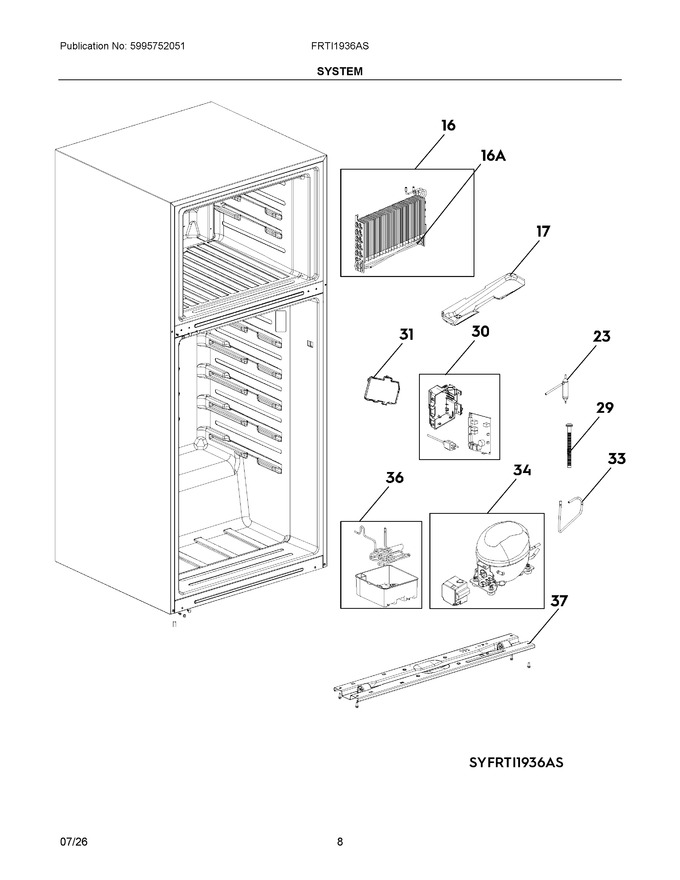

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	4056044508		Evaporator Assembly, W/defrost Heater		Appelez-nous	-
17	4056044516		Evaporator Drain, Tray		Appelez-nous	-
23	5304536986		Dryer, Filter			Immediately	$ 25.38
29	5304536985		Tube, Drain		Appelez-nous	-
30	4056044573		Main Electronic Board, W/housing, & Power Cord		Appelez-nous	-
31	4056044003		Mounting Box, Cover, Pc Board		Appelez-nous	-
33	4056044581		Tube Connection, Suction		Appelez-nous	-
34	4056044599		Compressor Assembly, W/inverter		Appelez-nous	-
36	4056039649		Drain Assembly, W/connector Pip				$ 27.67
37	4056039664		Base Assembly, Compressor, Plate		Appelez-nous	-
16A	5304536960		Heater, Defrost				$ 110.52

    View Diagram in Separate Window       Print Part List
