View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

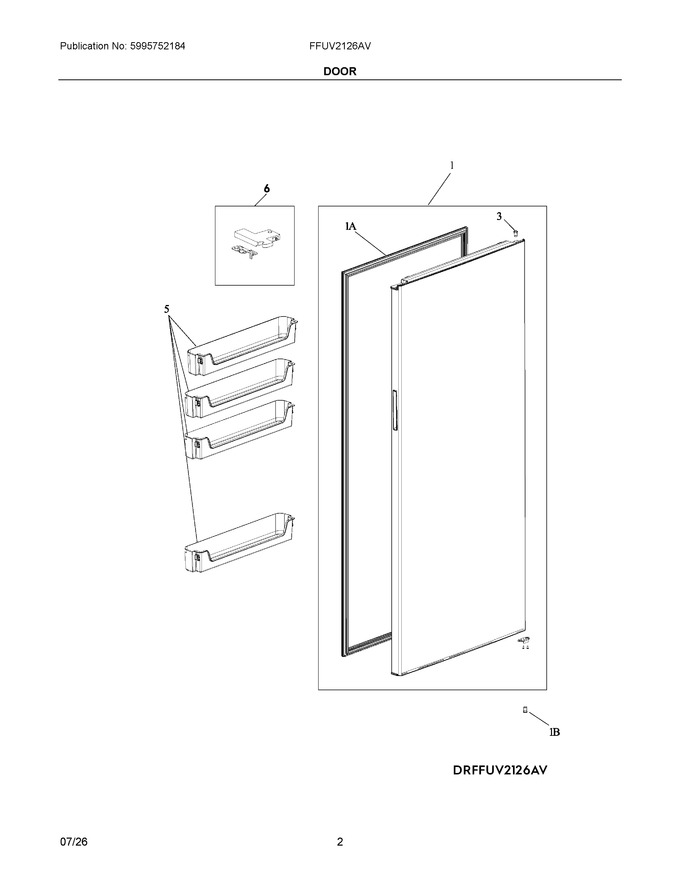

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056043831 | Door Assembly Complete, Freezer, Stainless |
|
- | |||||
| 3 | 5304523525 | Hinge Bearing, Door, Upper Hinge |
|
$ 7.59 | |||||
| 5 | 4056043856 | Bin, Door Shelf, Assembly |
|
$ 25.07 | |||||
| 6 | 4056046321 | Door Reversal Support, Components |
|
Immediately | $ 23.11 | ||||
| 1A | 4056043849 | Gasket Assembly, Freezer Door |
|
$ 70.53 | |||||
| 1B | 5304523524 | Sleeve, Hinge Pin, Lower |
|
Immediately | $ 8.34 |
