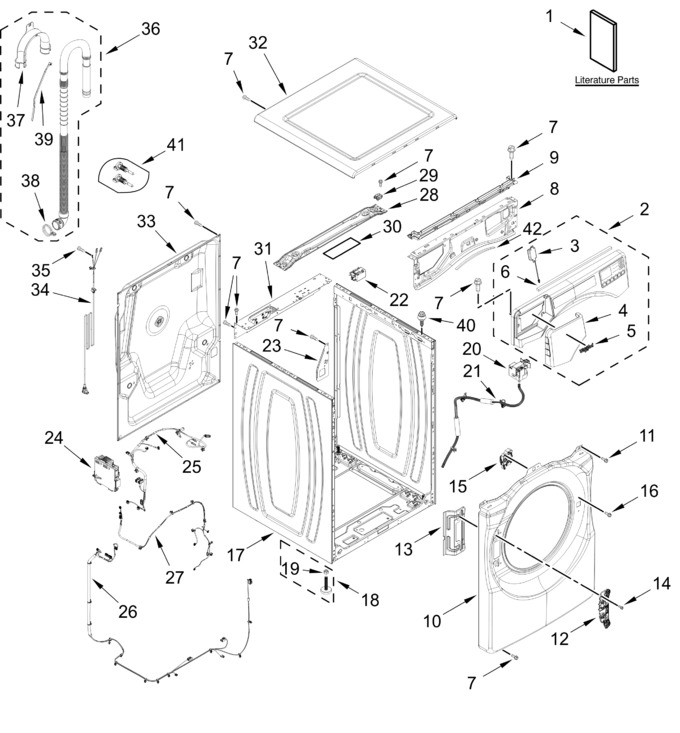

SELECT A DIAGRAM

Dispenser Parts


Door Parts


Optional Parts (not Included)


Top And Cabinet Parts


Tub And Basket Parts


Water System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11318817		Assembly, Console (white)   (Replaces: W11294856)				$ 390.03
3	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
4	W11318818		Handle, Drawer (white)   (Replaces: W11167033)			Immediately	$ 90.99
5	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
6	W11231800		Seal		Appelez-nous	-
7	W11568617		Screw   (Replaces: W10567155)				$ 14.72
8	W11314678		Bracket, Console   (Replaces: W10915381)				$ 156.02
9	W11458348		Channel, Water   (Replaces: W10796898)		Appelez-nous	-
10	W11318809		Panel, Front (white)   (Replaces: W11107843)			Immediately	$ 335.83
11	WP273556		Screw   (Replaces: 357640)			Immediately	$ 8.43
12	W11742046		Hinge Assembly   (Replaces: W11114011)			Immediately	$ 162.31
13	W11310030		Hinge Bracket   (Replaces: W11084215)				$ 24.71
14	W11661566		Screw   (Replaces: W10288126)				$ 14.73
15	W11565030		Lock, Door   (Replaces: W10804741)			Immediately	$ 59.42
16	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
17	W11352995		Cabinet (white)			Immediately	$ 525.15
18	W10888529		Leveling Leg Assembly   (Replaces: W10073890)			Immediately	$ 13.29
19	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 7.55
20	W11316246		Pressure Switch   (Replaces: W11125159)			Immediately	$ 103.04
21	W11456953		Hose, Pressure Switch   (Replaces: W11319791)			Immediately	$ 34.90
22	W11316771		Rfi Filter   (Replaces: W11219530)			Immediately	$ 109.89
23	W11316769		Bracket, Drain Hose   (Replaces: W11091443)			Immediately	$ 22.09
24	W11482418		Appliance Control Unit (acu)				$ 517.20
25	W11744014		Harness, Upper   (Replaces: W11133142)				$ 60.22
26	W11318751		Harness, Main Lower   (Replaces: W10919937)				$ 186.56
27	W11349139		Harness, Drum / Hmi Light				$ 178.23
28	W10467484		Brace, Top				$ 44.98
29	W11846996		Retainer, Spring   (Replaces: W10245452)				$ 10.07
30	W11314674		Foam Pad   (Replaces: W10331064)				$ 19.90
31	W11353016		Bracket, Rear				$ 24.92
32	WPW10208373		Top (white)   (Replaces: W10208373)				$ 336.48
33	W11315708		Panel, Rear   (Replaces: W11046440)				$ 402.71
34	W11316254		Cord, Power   (Replaces: W10919946)			Immediately	$ 134.51
35	W10850756		Screw   (Replaces: W10773242)				$ 8.20
36	W11551765		Hose, Drain (external)   (Replaces: W11392677)			Immediately	$ 20.82
37	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 83.51
38	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
39	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 8.30
40	W10208380		Screw And Bushing Assembly				$ 72.48
41	W11316629		Bolt, Transport (short)   (Replaces: W11041011)				$ 43.73
42	W11316770		Edge Guard   (Replaces: W10407376)		Appelez-nous	-
	W11325564		Panel, Front (chrome Shadow)   (Replaces: W11107844)			Immediately	$ 336.67
	W11355381		Quick Start Guide		Appelez-nous	-
	W11356847		Energy Guide		Appelez-nous	-
	W11352996		Cabinet (chrome Shadow)				$ 535.42
	W11327395		Assembly, Console (chrome Shadow)   (Replaces: W11294855)			Immediately	$ 397.16
	WPW10460693		Top (chrome Shadow)   (Replaces: W10460693)				$ 369.69
	W11355369		Owner's Manual		Appelez-nous	-
	W11573819		Handle, Drawer (chrome Shadow)   (Replaces: W11167034)				$ 198.80

    View Diagram in Separate Window       Print Part List
