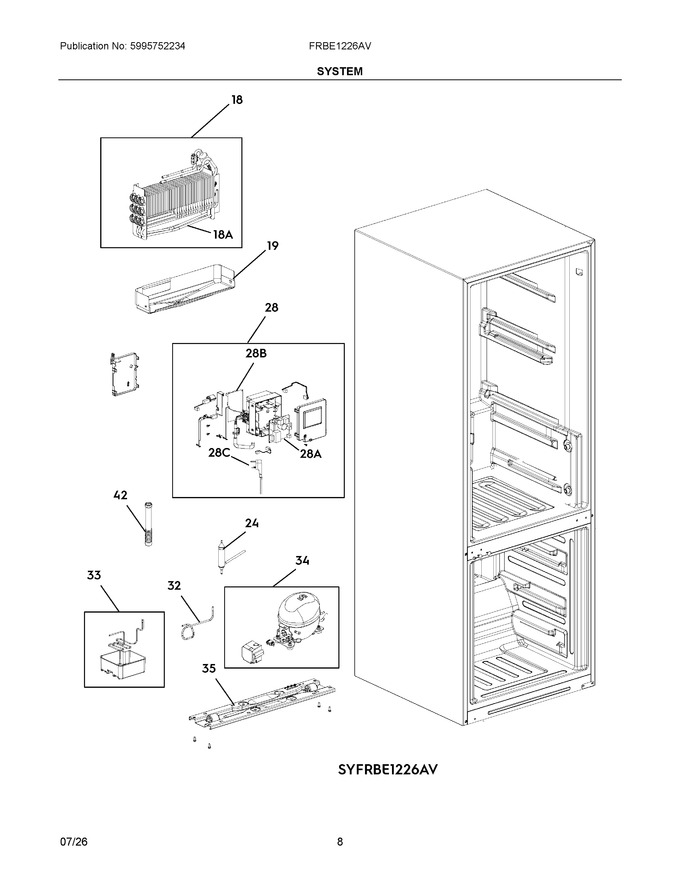

05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 4056063953 | Evaporator Assembly, W/defrost Heater |
|
- | |||||
| 19 | 4056063979 | Drain Tray, Evaporator |
|
- | |||||
| 24 | 4056039631 | Filter Drier |
|
- | |||||
| 28 | 4056064001 | Main Electronic Board, Assembly, W/housing, &power Cord |
|
- | |||||
| 32 | 4055976734 | Connection Tube, Suction |
|
- | |||||
| 33 | 4055976759 | Tray Drain, Assembly |
|
- | |||||
| 34 | 4056064035 | Compressor Assembly, W/electricals, Cover |
|
- | |||||
| 35 | 4055976742 | Base Plate, Compartment, Compressor |
|
- | |||||
| 42 | 4056064043 | Hose, Drain |
|
- | |||||
| 18A | 4056063961 | Defrost Heater |
|
- | |||||
| 28A | 4056064019 | Main Electronic Board |
|
- | |||||
| 28B | 4056064027 | Control Board, Variable Drive |
|
- | |||||
| 28C | 5304536983 | Power Cord |
|
- |
