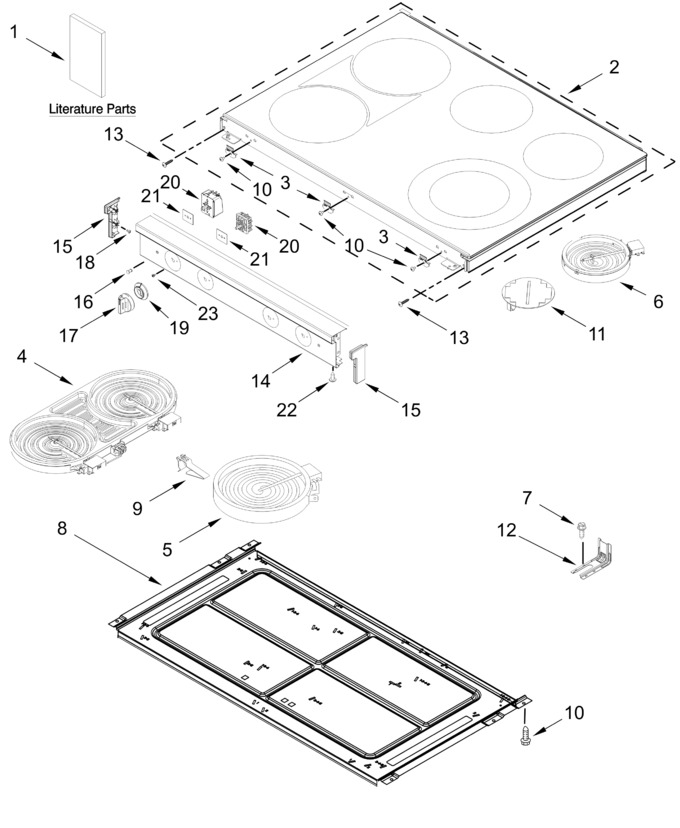

SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11730427		Cooktop (black, Includes Cooktop Bracket)   (Replaces: W11629537)				$ 1,238.23
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11763590		Bridge, (1800w, 800w)   (Replaces: W11724301)				$ 272.58
5	W11768719		Element (3000w)   (Replaces: W11735737)				$ 184.49
6	W11747449		Element (single, 1200w)   (Replaces: W11724296)				$ 165.20
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11729951		Pan, Radiant Element   (Replaces: W11300812)				$ 223.66
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 133.94
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
13	W11684512		Screw   (Replaces: 3400080)				$ 14.81
14	W11730071		Panel Upper, Manifold (black Stainless)   (Replaces: W11393097)			Immediately	$ 373.31
15	W11730066		Endcap (black Stainless, Left)   (Replaces: W11361197)				$ 85.12
16	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
17	W11730064		Knob (black Stainless, Single)   (Replaces: W11635841)		Appelez-nous	-
18	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
19	W11730062		Bezel (black Stainless)   (Replaces: W11635851)				$ 61.32
20	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
21	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
23	W11846982		Screw   (Replaces: W10498399)				$ 11.75
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11729952		Harness, Hidden Bake   (Replaces: W11585874)				$ 61.80
	W11729957		Harness, Wire   (Replaces: W11393541)				$ 232.13
	W11730078		Panel Upper, Manifold (stainless)   (Replaces: W11393096)				$ 384.21
	W11730268		Endcap (stainless, Left)   (Replaces: W11386024)				$ 84.98
	W11730267		Endcap (stainless, Right)   (Replaces: W11386023)				$ 84.98
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11730070		Endcap (black Stainless, Right)   (Replaces: W11361196)				$ 85.12
	W11729954		Harness, Front Dual   (Replaces: W11341202)				$ 300.25
	W11729968		Harness, Cooktop   (Replaces: W11341267)				$ 226.79
	W11730072		Harness, Main   (Replaces: W11334457)		Appelez-nous	-
	W11661906		Switch, Infinite   (Replaces: W10843843)			Immediately	$ 19.59
	W11639164		Tech, Sheet		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12		(center Rear)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11730063		Knob (black Stainless, Dual)   (Replaces: W11635842)				$ 68.40
	ARI130620F5738F97FA53E648D69A4CE80B		(left Front, Left Rear)		Appelez-nous	-
	W11638635		Owners Manual		Appelez-nous	-
	W11638798		Quick Start Guide		Appelez-nous	-
	W11730073		Bezel (stainless)   (Replaces: W11635850)			Immediately	$ 63.40
	W11730074		Knob (stainless, Dual)   (Replaces: W11635837)				$ 68.40
	W11730076		Knob (stainless, Single)   (Replaces: W11635836)			Immediately	$ 101.49
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
