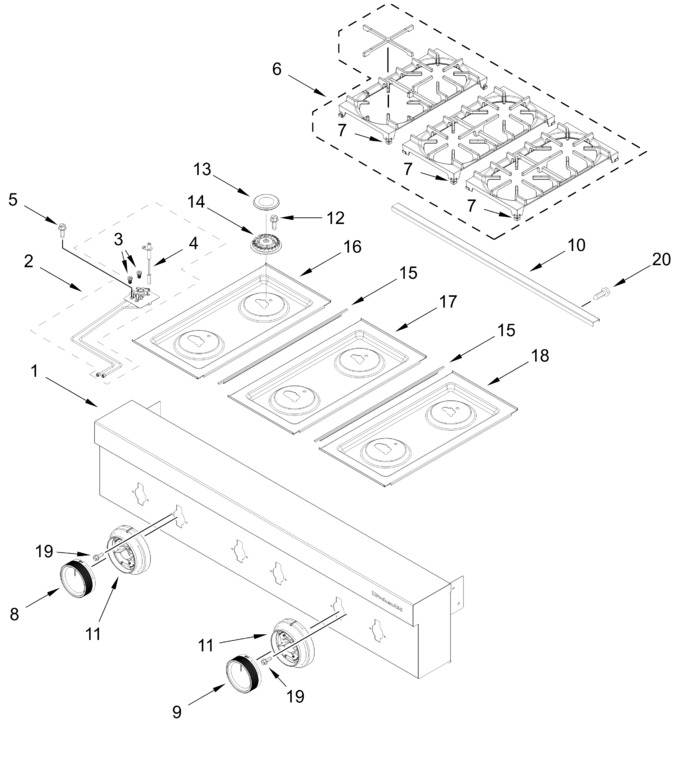

Burner Box Parts


Cooktop And Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11837324		Panel, Console (stainless)   (Replaces: W11808411)		Appelez-nous	-
2	W11337062		Orifice Holder Assembly   (Replaces: W10892771)			Immediately	$ 128.25
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 65.21
4	W11580024		Igniter   (Replaces: W11238758)			Immediately	$ 23.66
5	7101P42660		Screw		Appelez-nous	-
6	W11789234		Grate Burner Kit				$ 565.75
7	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
8	W11837325		Knob, Dual (stainless)   (Replaces: W11821532)		Appelez-nous	-
9	W11837326		Knob, Single (stainless)   (Replaces: W11821531)		Appelez-nous	-
10	W11355760		Trim, Island				$ 246.15
11	W11837327		Bezel (stainless)   (Replaces: W11821540)		Appelez-nous	-
12	W11643628		Screw   (Replaces: W11323261)				$ 14.75
13	W11344538		Cap, Burner (black, Set Of 6)   (Replaces: W11121390)			Immediately	$ 171.43
14	W11344539		Spreader, Flame   (Replaces: W10891746)			Immediately	$ 141.16
15	W10271524		Trim, T-strip (black)				$ 212.34
16	W11344755		Panel, Left Cooktop (black)   (Replaces: W11038235)				$ 199.76
17	W11344757		Panel, Center Cooktop (black)   (Replaces: W11038257)				$ 199.76
18	W11344761		Panel, Right Cooktop (black)   (Replaces: W11038248)				$ 199.76
19	W11509770		Screw   (Replaces: W11328357)				$ 14.23
20	7101P33860		Screw		Appelez-nous	-
	W10892438		Orifice, Simmer (5k)				$ 99.86
	W11344742		Spreader, Flame   (Replaces: W10891974)			Immediately	$ 134.12
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 75.02
	W11628654		Igniter   (Replaces: W10892340)			Immediately	$ 54.92
	ARI5F3F33C66B028760CF46AC61DE6BE21E		(left Rear, Center Front, Center Rear, Right Rear)		Appelez-nous	-
	W11381271		Orifice Holder Assembly   (Replaces: W11159468)			Immediately	$ 117.04
	W11381273		Orifice Holder Assembly   (Replaces: W10892767)			Immediately	$ 123.40
	W11344746		Spreader, Flame   (Replaces: W10891978)			Immediately	$ 133.20
	ARIAF8B2CF0387D82C1B76CFE2500CD62C6		(left Rear, Right Rear)		Appelez-nous	-
	W11378585		Orifice Holder Assembly   (Replaces: W10892484)				$ 123.22
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12		(center Rear)		Appelez-nous	-
	ARID5FC0C9D80A03900EBB467174EE74F38		(left Rear, Center Front, Right Rear)		Appelez-nous	-
	ARI5D10814EA01143EB5BE4EE5A9E8F71F6		(center Front)		Appelez-nous	-
	W11678580		Screw   (Replaces: W11323309)				$ 14.78
	W11672510		Orifice, Main (15k)   (Replaces: W10892419)			Immediately	$ 107.87
