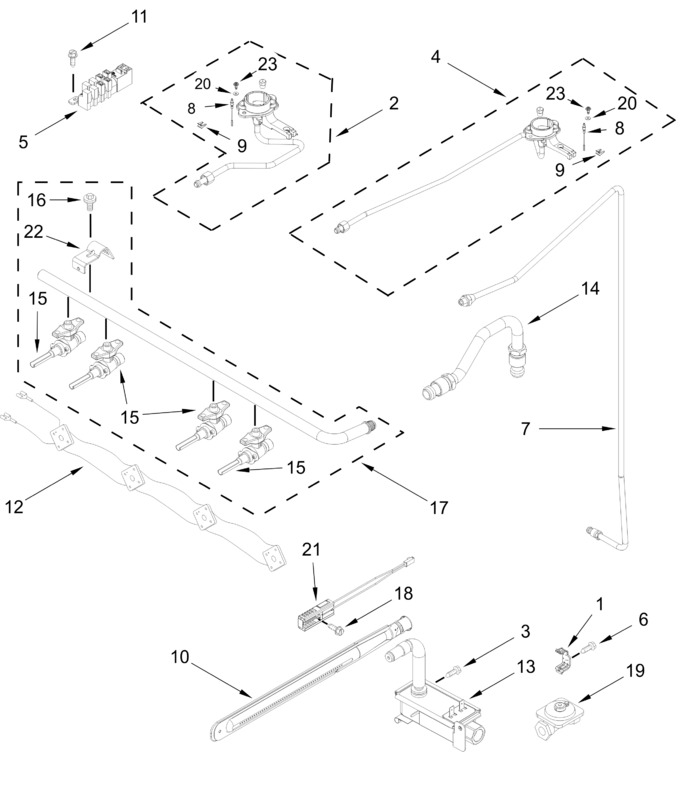

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98007410		Bracket, Regulator		Appelez-nous	-
2	W11590058		Tubing, Assembly   (Replaces: W11459683)		Appelez-nous	-
3	98013634		Screw		Appelez-nous	-
4	W11590060		Tubing, Assembly   (Replaces: W11459685)		Appelez-nous	-
5	W11590249		Module, Spark   (Replaces: W11281166)				$ 24.51
6	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
7	W11628651		Tube 3/8 In. (manifold To Regulator)   (Replaces: W10619922)		Appelez-nous	-
8	W11666003		Electrode, Burner   (Replaces: W10669525)				$ 48.41
9	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
10	W11220387		Burner, Oven   (Replaces: W10650358)				$ 198.58
11	W10837731		Screw   (Replaces: W10493726)				$ 8.30
12	W11620549		Harness, Switch   (Replaces: W11542585)		Appelez-nous	-
13	W11590251		Valve, Oven   (Replaces: W11449991)			Immediately	$ 114.48
14	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
15	W11620420		Valve, Saddle   (Replaces: W11509768)		Appelez-nous	-
16	98017517		Screw		Appelez-nous	-
17	W11509597		Manifold, Assembly		Appelez-nous	-
18	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
19	W11590292		Regulator   (Replaces: W11466755)		Appelez-nous	-
20	W11629191		Washer		Appelez-nous	-
21	W11590294		Igniter, Hot Surface   (Replaces: W11506321)		Appelez-nous	-
22	W11615438		Bracket, Valve		Appelez-nous	-
23	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11620109		Valve, Saddle   (Replaces: W11509767)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI331AC8E6A0B32951011383800D6FC3B6		(left Front, Right Front)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11620424		Valve, Saddle   (Replaces: W11509766)		Appelez-nous	-
	W11841824		Kit, Lp Conversion   (Replaces: W11836142)		Appelez-nous	-
	W11590248		Tubing, Assembly   (Replaces: W11459684)		Appelez-nous	-
	W11590059		Tubing, Assembly   (Replaces: W11459686)		Appelez-nous	-
	W11688146		Electrode   (Replaces: W10876260)				$ 29.89
	ARI953D0CD9882CCDFCDBAEB8406738A4EF		(left Front, Left Rear, Right Front, Right Rear)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
