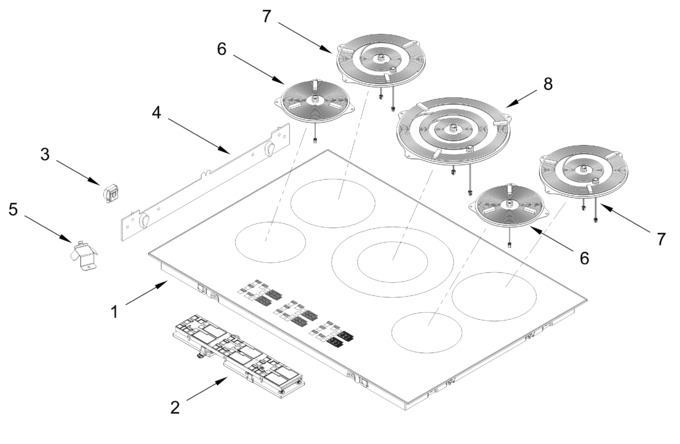

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11589812 | Glass Cooktop Assembly (black) (Replaces: W11266276) |
|
$ 845.12 | |||||
| 2 | W11727271 | User Interface Assembly (Replaces: W11669435) |
|
$ 450.24 | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11560534 | Element (6 Inch) (Replaces: W11429950) |
|
Immediately | $ 198.51 | ||||
| 7 | W11560536 | Element (7 Inch) (Replaces: W11429951) |
|
Immediately | $ 200.09 | ||||
| 8 | W11560537 | Element (8.75 Inch) (Replaces: W11429956) |
|
Immediately | $ 225.96 | ||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- |
