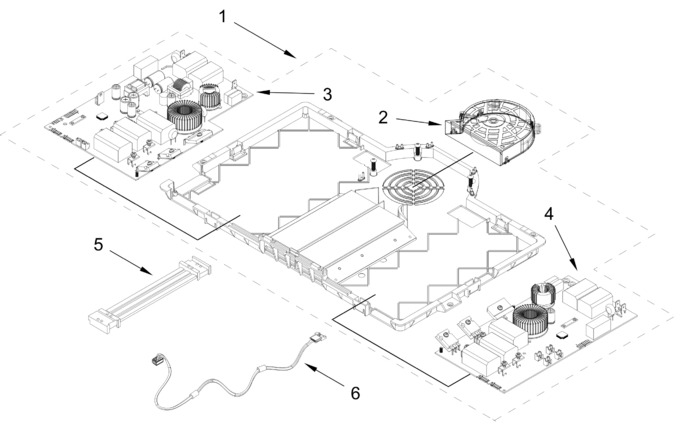

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11814882 | Module Assembly (Replaces: W11788463) |
|
$ 706.62 | |||||
| 2 | W11246545 | Blower Assembly |
|
Immediately | $ 310.94 | ||||
| 3 | ARICCA2A18717CE8FBB3D235FD86CE63128 | Power Board Ascari (not Serviced) |
|
- | |||||
| 4 | ARID9BAC193F4EBAD45F26BF3106628DB58 | Power Board Farina (not Serviced) |
|
- | |||||
| 5 | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 52.94 | |||||
| 6 | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 59.90 | ||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11789141 | Cord, Power (includes Terminal Block/nuts And Capacitor) (Replaces: W11209919) |
|
- |
