Diagram for Burner Box And Griddle Parts
Burner Box And Griddle Parts

Diagram for Cooktop, Burner, And Grate Parts
Cooktop, Burner, And Grate Parts

No Diagram Image Available
Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11318834 Control, Griddle   (Replaces: W11033497) Special Order $ 356.52

2 W11337062 Orifice Holder Assembly   (Replaces: W10892771) In-Stock Immediately $ 128.25

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11580024 Igniter   (Replaces: W11238758) In-Stock Immediately $ 23.66

5 W11789234 Grate Burner Kit Special Order $ 565.75

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11643628 Screw   (Replaces: W11323261) Special Order $ 14.75

8 WPW10254050 Screw   (Replaces: W10254050) Special Order $ 9.22

9 W10116114 Light, Indicator Housing In-Stock Immediately $ 93.57

10 W10294500 Lens, Indicator Light Special Order $ 7.69

11 W11837326 Knob, Single (stainless)   (Replaces: W11821531) Appelez-nous -
12 W11837325 Knob, Dual (stainless)   (Replaces: W11821532) Appelez-nous -
13 W11837327 Bezel (stainless)   (Replaces: W11821540) Appelez-nous -
14 W11344539 Spreader, Flame   (Replaces: W10891746) In-Stock Immediately $ 141.16

15 W11344538 Cap, Burner (black, Set Of 6)   (Replaces: W11121390) In-Stock Immediately $ 141.29

16 W10271524 Trim, T-strip (black) Special Order $ 212.34

17 W10291193 Trim, L-strip Appelez-nous -
18 W11344755 Panel, Cooktop (black)   (Replaces: W11038235) Special Order $ 199.76

19 W11344757 Panel, Cooktop (black)   (Replaces: W11038257) Special Order $ 199.76

20 W11392645 Panel, Cooktop (black)   (Replaces: W11038243) Special Order $ 491.89

21 W11355761 Trim, Island Appelez-nous -
22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11847778 Panel, Console (stainless)   (Replaces: W11808437) Appelez-nous -
24 7101P30960 Screw Appelez-nous -
25 7101P33860 Screw Appelez-nous -
26 W11602621 Griddle Module Assembly   (Replaces: W10891745) In-Stock Immediately $ 1,547.02

27 W11789790 Knob, Griddle (stainless)   (Replaces: W11732238) Appelez-nous -
28 W11789788 Bezel, Griddle (stainless)   (Replaces: W11741956) Appelez-nous -
29 7101P42660 Screw Appelez-nous -
ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -
W11678580 Screw   (Replaces: W11323309) Special Order $ 14.78

ARI1CEA8328406821DB8179A8C971BDB5B4 (left Rear, Right Rear) Appelez-nous -
W11628654 Igniter   (Replaces: W10892340) In-Stock Immediately $ 54.92

W11344746 Spreader, Flame   (Replaces: W10891978) In-Stock Immediately $ 133.20

W11344742 Spreader, Flame   (Replaces: W10891974) In-Stock Immediately $ 134.12

W11672510 Orifice, Main (15k)   (Replaces: W10892419) In-Stock Immediately $ 107.87

W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

W11378585 Orifice Holder Assembly   (Replaces: W10892484) Special Order $ 123.22

W10892438 Orifice, Simmer (5k) Special Order $ 99.86

ARI5D10814EA01143EB5BE4EE5A9E8F71F6 (center Front) Appelez-nous -
ARID5FC0C9D80A03900EBB467174EE74F38 (left Rear, Center Front, Right Rear) Appelez-nous -
ARI5F3F33C66B028760CF46AC61DE6BE21E (left Rear, Center Front, Center Rear, Right Rear) Appelez-nous -
W11381271 Orifice Holder Assembly   (Replaces: W11159468) In-Stock Immediately $ 117.04

W11381273 Orifice Holder Assembly   (Replaces: W10892767) In-Stock Immediately $ 123.40

ARIF51CD619278F411F0D01263DCFA5380D (assembly Breakdown Shown On Burner Box Page) Appelez-nous -
ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 (center Rear) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

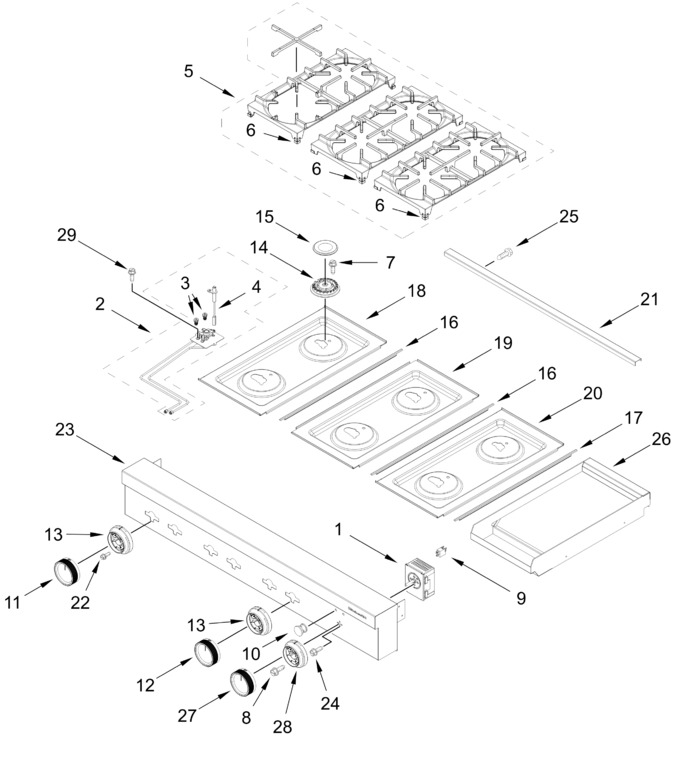

Diagram for KCGK948TSS00
