SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

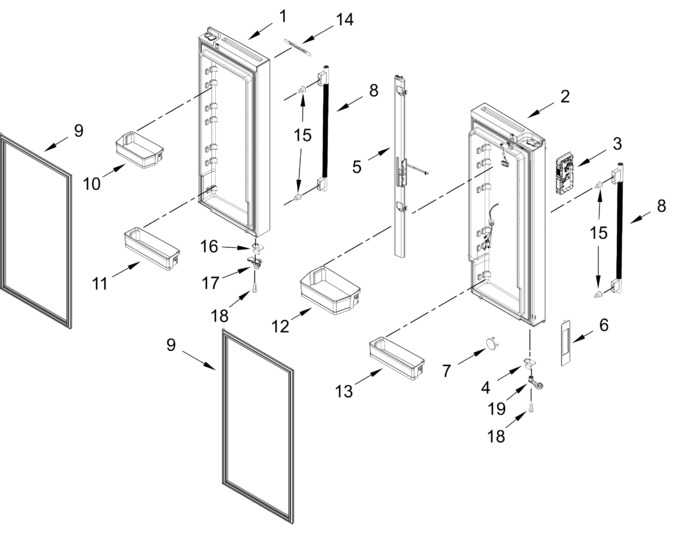

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11764586		Right Door Assembly (black Ore)		Appelez-nous	-
2	W11764585		Left Door Assembly (black Ore)		Appelez-nous	-
3	W11832359		Temperature Ui Assembly (wifi)   (Replaces: W11606801)		Appelez-nous	-
4	W11787142		Door Stopper (black, Left Hand)   (Replaces: W11681260)		Appelez-nous	-
5	W11845147		Mullion Assembly   (Replaces: W11555791)		Appelez-nous	-
6	W11787152		Door Duct Retainer   (Replaces: W11685003)		Appelez-nous	-
7	W11791178		Cover Screw   (Replaces: W11589852)		Appelez-nous	-
8	W11794072		Handle Assembly (black Ore)   (Replaces: W11682897)				$ 271.05
9	W11832357		Refrigerator Door Gasket (grey)   (Replaces: W11586646)		Appelez-nous	-
10	W11791181		Gallon Bin (right Hand)   (Replaces: W11657108)				$ 58.46
11	W11791199		Bottom Bin (right Hand)   (Replaces: W11657111)		Appelez-nous	-
12	W11791212		Gallon Bin (left Hand)   (Replaces: W11657107)		Appelez-nous	-
13	W11791206		Bottom Bin (left Hand)   (Replaces: W11657113)		Appelez-nous	-
14	W11759445		Badge   (Replaces: W11688412)			Immediately	$ 50.32
15	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
16	W11818657		Door Stopper (black, Right Hand)   (Replaces: W11681256)		Appelez-nous	-
17	W11818658		Door Bushing (grey, Right Hand)   (Replaces: W11562282)		Appelez-nous	-
18	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
19	W11818659		Door Bushing (grey, Left Hand)   (Replaces: W11562283)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
