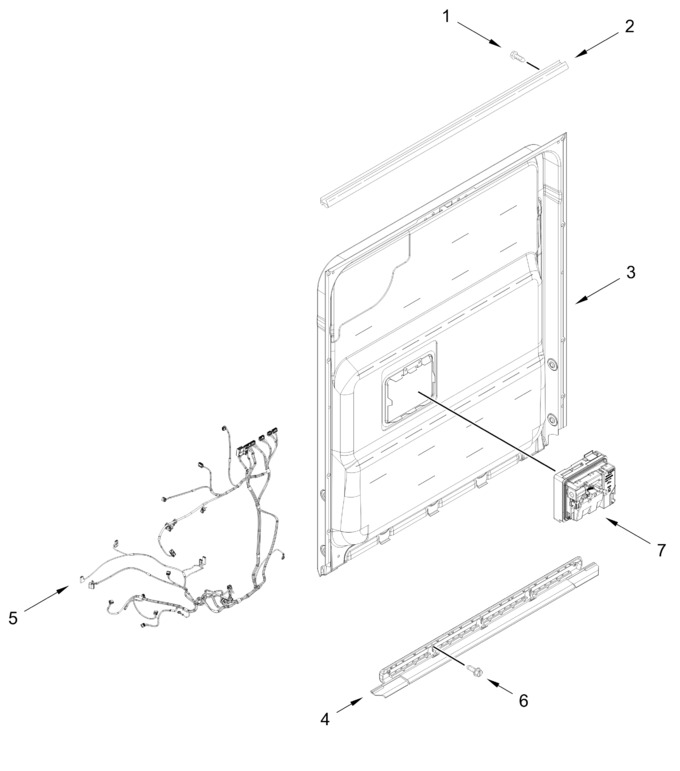

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
2	W11213719		Seal, Console/door   (Replaces: W11050927)			Immediately	$ 172.77
3	W11846359		Inner Door Assembly   (Replaces: W11820419)		Appelez-nous	-
4	W11252794		Door Bottom, Seal   (Replaces: W10920683)			Immediately	$ 110.63
5	W11840153		Wiring Harness		Appelez-nous	-
6	W11631670		Screw   (Replaces: W11476843)				$ 14.72
7	W10861000		Dispenser Assembly   (Replaces: W10620296)			Immediately	$ 120.54
