Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:

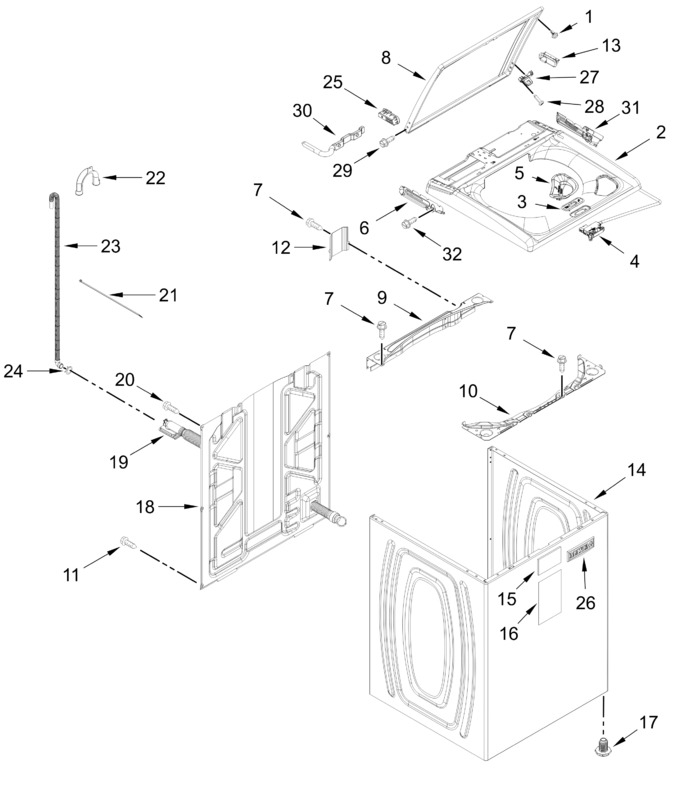

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8572266 | Bumper, Door |
|
Immediately | $ 11.17 | ||||
| 2 | W11782255 | Top (white) (Replaces: W11674351) |
|
$ 261.44 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 25.02 | ||||
| 4 | W11513248 | Latch, Lid Lock Assembly (Replaces: W11414731) |
|
Immediately | $ 76.88 | ||||
| 5 | W11781649 | Bleach Dispenser (white) (Replaces: W11676628) |
|
$ 13.97 | |||||
| 6 | W11782252 | Hinge, Spring Lid (left) (Replaces: W11715475) |
|
- | |||||
| 7 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 8 | W11799972 | Lid Assembly (white) (Replaces: W11679684) |
|
Immediately | $ 272.42 | ||||
| 9 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 98.93 | |||||
| 10 | W11381327 | Channel, Top Front |
|
Immediately | $ 74.76 | ||||
| 11 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 12 | W10676061 | Cover, Harness |
|
$ 35.02 | |||||
| 13 | W11654272 | Hinge, Spacer Right (Replaces: W11434930) |
|
$ 17.25 | |||||
| 14 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 458.85 | |||||
| 15 | WP8564458 | Absorber, Impact (small) (Replaces: 8564458) |
|
Immediately | $ 7.98 | ||||
| 16 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 22.17 | |||||
| 17 | W11213957 | Foot Leveling Assembly (Replaces: W11179235) |
|
Immediately | $ 13.56 | ||||
| 18 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 312.11 | ||||
| 19 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 34.08 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 21 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 22 | WPW10280024 | U-bend, Drain Hose (Replaces: W11705656) |
|
$ 79.53 | |||||
| 23 | W11764699 | Outer Drain Hose (Replaces: W11703202) |
|
$ 39.04 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | W11782264 | Hinge, Spacer (left) (Replaces: W11718795) |
|
$ 6.17 | |||||
| 26 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 40.34 | ||||
| 27 | W11513250 | Lid Strike, (white) (Replaces: W11391550) |
|
Immediately | $ 12.94 | ||||
| 28 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.19 | ||||
| 29 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 7.19 | ||||
| 30 | W11782257 | Wire Hinge (Replaces: W11760184) |
|
- | |||||
| 31 | W11782251 | Hinge, Spring Lid (right) (Replaces: W11715474) |
|
- | |||||
| 32 | WPW10068250 | Screw (Replaces: W10584177) |
|
$ 4.07 |
