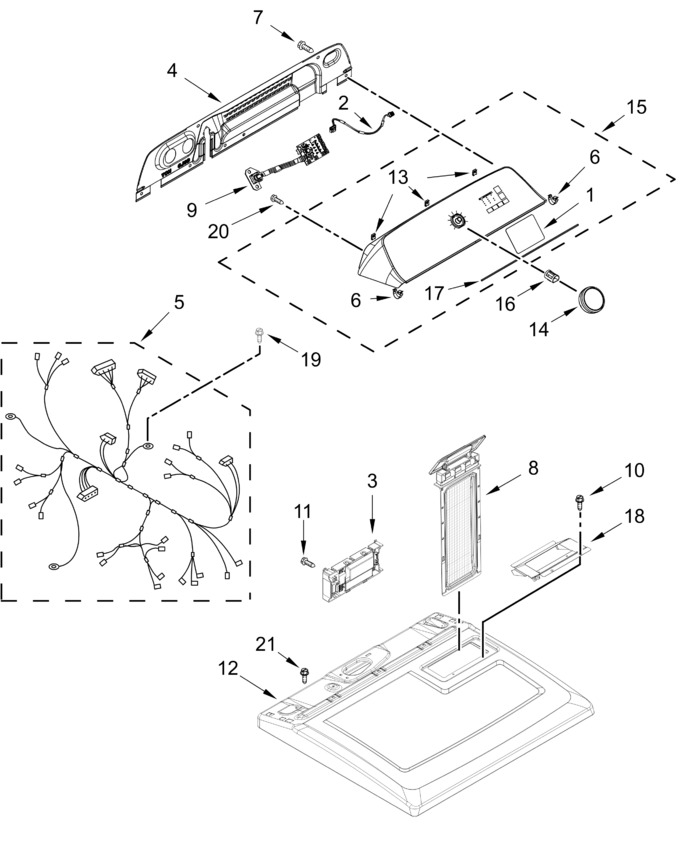

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788156		Overlay   (Replaces: W11675681)		Appelez-nous	-
2	W11811253		Harness, Hmi		Appelez-nous	-
3	W11812356		Appliance Control Unit (acu)		Appelez-nous	-
4	W11783798		Panel, Rear   (Replaces: W11707561)		Appelez-nous	-
5	W11788142		Harness, Main   (Replaces: W11679885)		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
8	W11778254		Lint Screen (white)   (Replaces: W11713538)			Immediately	$ 54.63
9	W11783797		Encoder, Mega Assembly   (Replaces: W11686055)				$ 295.70
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
12	W11783727		Top (white)   (Replaces: W11683264)				$ 195.37
13	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
14	W11752162		Assembly, Knob   (Replaces: W11709753)		Appelez-nous	-
15	W11820329		Assembly, Console (white)		Appelez-nous	-
16	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
17	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
18	W10662472		Collar, Lint Chute				$ 77.87
19	W10850756		Screw   (Replaces: W10773242)				$ 8.20
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
