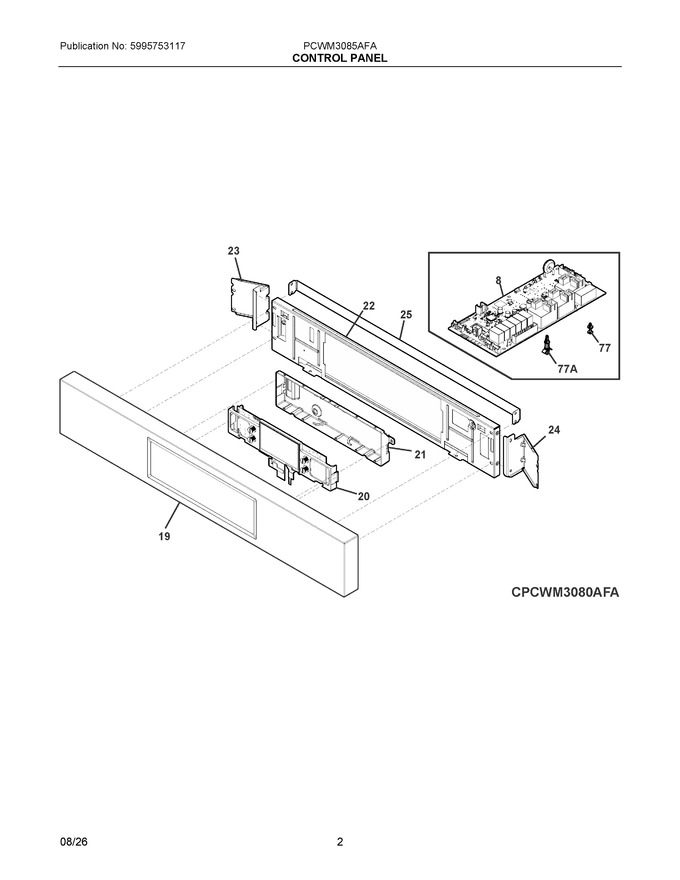

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	140205477080		Board Ovc, Microwave, Ariane				$ 150.83
19	140171003050		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225820459		User Interface Board, Ui, Niu6		Appelez-nous	-
21	5304523582		Housing, Controller			Immediately	$ 37.92
22	A16358901		Bracket, Support, Control Panel				$ 89.54
23	5304530392		Bracket, Control Panel, Lh				$ 19.44
24	5304530393		Bracket, Control Panel, Rh				$ 19.44
25	5304535440		Bracket-control Panel Emc 30				$ 10.31
77	5304530451		Spacer, Standoff, Ovc		Appelez-nous	-
22A	5304526426		Bracket-support Control Pux		Appelez-nous	-
77A	316114100		Spacer				$ 67.73
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 123.25
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 171.61
NI	5304530401		Harness, Communication, Macs, Ovc To Lux/pux				$ 16.12
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 46.57
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
